OMEGA BRACKET (STANDARD & SERRATED) | TYPE ST- 1100 700

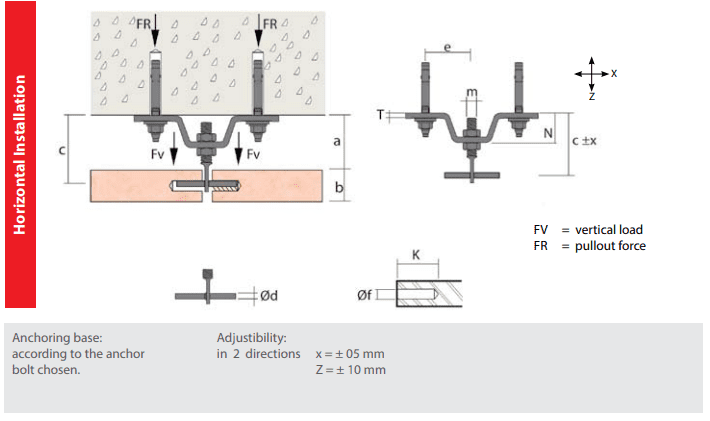

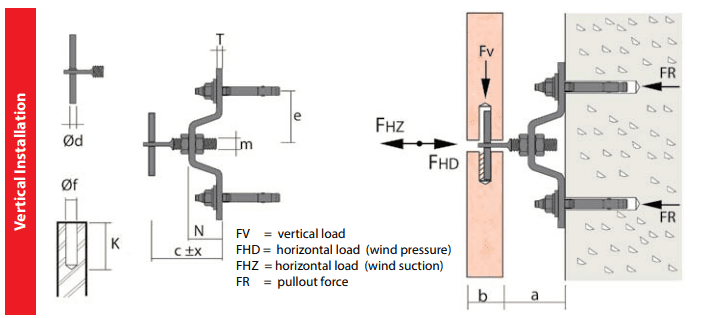

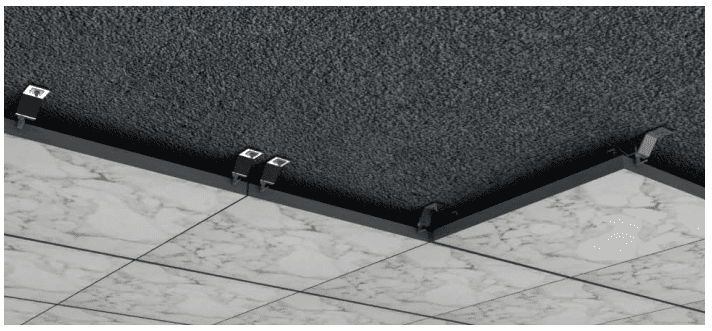

OMEGA ANCHORS, Omega anchors can be used in other formations where alternate fixing methods are required in certain applications. Omega anchors can be fixed to the backing structure at 2 points. It is for fastening the natural stone panel beneath a concrete floor slab.

Omega Brackets Load Table

Materials SS304, SS316, SS316L, SS316TI, Providing high quality Structural Components and Facade Cladding Fixings for the Construction Industry high Quality facade Fixings Custom fixings fabricated on-demand Natural Stone Fixing Systems. Natural Stone Support Systems,Natural Stone Anchors.

Standard items:

Get a quote
Item No. Bracket Offset (N) mm Cavity to Pin min – max (c) mm Dead load max DL kN Wind load max WL ± kN Bracket Width mm Bracket Thickness (T) mm Ø Pin (dz) mm FHB A70-2 A70-4 Anchor Comb. Force kN *
70.30.3-1105 700 70 110-100 0.16 0.22 30 3 4 M8 2.30
80.30.3-1105 700 80 120-110 30 3 4 M8 2.40
90.35.3-1105 700 90 130-120 35 3 4 M8 2.50
100.35.3-1105 700 100 140-130 35 3 4 M8 2.50
110.40.3-1105 700 110 150-140 40 3 4 M8 2.50
120.40.3-1105 700 120 160-150 40 3 4 M8 2.60
70.55.3-1105 700 70 110-100 0.28 0.39 55 3 5 M10 4.10
80.55.3-1105 700 80 120-110 55 3 5 M10 4.20
90.50.4-1105 700 90 130-120 50 4 5 M10 4.30
100.50.4-1105 700 100 140-130 50 4 5 M10 4.40
110.55.4-1105 700 110 150-140 55 4 5 M10 4.50
120.55.4-1105 700 120 160-150 55 4 5 M10 4.60
70.50.5-1105 700 70 120-100 0.55 0.77 50 5 6 M12 8.80
80.50.5-1105 700 80 130-110 50 5 6 M12 9.00
90.55.5-1105 700 90 140-120 55 5 6 M12 9.20
100.55.5-1105 700 100 150-130 55 5 6 M12 9.40
110.60.5-1105 700 110 160-140 60 5 6 M12 9.60
120.60.5-1105 700 120 170-150 60 5 6 M12 9.80

Loads per 1 bracket If loads are bigger or dimensions are different, individual calculation is needed * with safety 3.0

Marble and Granite Mechanical Cladding Systems
Types Of Fixings
Principles for the Fixing of Building Cladding
The fixing systems for building cladding are composed of several elements (angles, expansion bolts, screws, nuts, washers, etc), each of which shall present the appropriate mechanical features in respect to the requirements posed by the specific project.
Any type of cladding, once fixed, is subject to two primary types of load:
– Permanent load (the dead load), due to the weight of the cladding itself.
– Variable load (applied loads), due to the wind, thermal expansions, seismic motions, etc.

Types of Facade Building Substructure
1- Stone fixed to concrete wall
2- Stone fixed to hollow block wall
3- Stone fixed to solid block
4- Stone fixed to composite substructure

Stone Cladding System， Granite Anchor， Marble Clamp， Z Bracket， Z Fixing System is Lifting and Handling Tools from China, welcome to buy Stone Cladding System Granite Anchor， Marble Clamp Z Bracket Z Fixing System with good quality and price from China suppliers and manufacturers directly.
Heavy Duty Anchor，fixing system，is used for fixing panels of granite, marble, sandstone, limestone, travertine, crystall glass, ceramic, calcium silicate, concrete fiber board, etc, in wall cladding projects.
