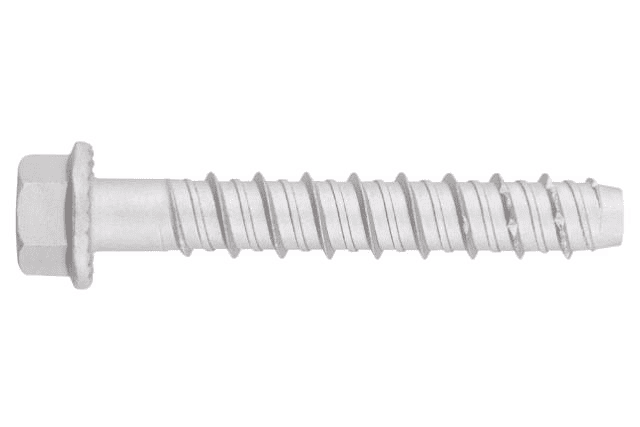

Self-tapping concrete screwbolt. Hexagon head. Atlantis coating.

Hexagon head

Hex Head Concrete Screw-bolt anchors are one-piece units featuring a finished hex head formed with an integral washer. Suitable for any trade, Carpenter, Form-worker, Tie down applications, Racking Installers, Construction, Can be used in Concrete, lightweight concrete, Hollow core concrete, Block, Brick, Stone.

Features
  • Hex Head Zinc finish
  • Ratchet teeth on the underside of the hex washer head lock against the fixture
  • Removable and vibration resistant
  • Patented dual lead thread and a chamfered tip.
  • Fast installation with Immediate high strength loading
  • Specially matched to the clearance hole, the need for layout or hole spotting is eliminated.
  • No expansion forces
  • Can be installed closer to the edge than traditional mechanical anchors
  • Can be installed at a shallower embedment reducing the chance of striking reinforcing bars or embedded cables.
Get a quote
Professional box
Dimension
Ø5 x 40 2400 pcs.
Ø5 x 50 1600 pcs.
Ø5 x 60 1600 pcs.
Ø5 x 80 800 pcs.
Ø5 x 100 800 pcs.
Ø6 x 40 1600 pcs.
Ø6 x 50 1200 pcs.
Ø6 x 60 1200 pcs.
Ø6 x 70 600 pcs.
Ø6 x 80 800 pcs.
Ø6 x 100 400 pcs.
Ø6 x 120 400 pcs.
Ø8 x 55 600 pcs.
Ø8 x 60 600 pcs.
Ø8 x 70 200 pcs.
Ø8 x 80 400 pcs.
Ø8 x 90 400 pcs.
Ø8 x 100 400 pcs.
Ø8 x 110 400 pcs.
Ø8 x 120 400 pcs.
Ø8 x 140 300 pcs.
Ø10 x 60 200 pcs.
Ø10 x 70 200 pcs.
Ø10 x 80 300 pcs.
Ø10 x 90 300 pcs.
Ø10 x 100 300 pcs.
Ø10 x 120 200 pcs.
Ø10 x 140 100 pcs.
Ø12 x 80 100 pcs.
Ø12 x 90 100 pcs.
Ø12 x 110 100 pcs.
Ø12 x 130 150 pcs.
Ø12 x 150 100 pcs.
Ø14 x 80 150 pcs.
Ø14 x 100 150 pcs.
Ø14 x 120 100 pcs.
Ø14 x 130 100 pcs.
Ø14 x 140 100 pcs.
Ø14 x 160 50 pcs.
Ø18 x 100 80 pcs.
Ø18 x 130 40 pcs.
Ø18 x 160 30 pcs.
Ø18 x 180 30 pcs.
Ø18 x 200 20 pcs.
Concrete
Concrete
Cracked concrete
Cracked concrete
Reinforced concrete
Reinforced concrete
Stone
Stone
