AC-TO

Review the AC-TO product reference and listed dimensions. Send the required size, material, quantity and project requirements to WISINE for quotation.

Fasteners>Anchors>Loose bolt 6.8

Show technical data

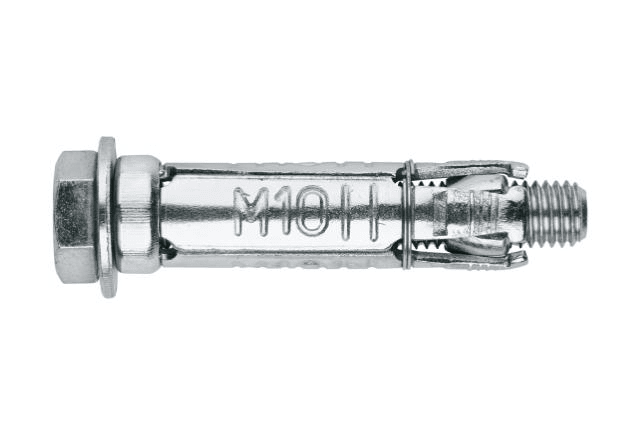

Winged steel anchor for heavy-duty fixings. Loose bolt 6.8.

Loose bolt 6.8

To be installed in solid masonry surfaces only. The installation surface will support the tension of the cable system. DO NOT install in surfaces in poor condition. It is your responsibility to ensure that the masonry will withstand both installation and tension of the finished netting or fence.

With a hammer drill and masonry bit, drill a 12 mm diameter hole, at least 55 mm deep. Blow out the dust or debris from the drilled hole and apply a small quantity of adhesive inside the hole.

Push the shield anchor into the hole. Tap the top of the anchor with a hammer to ensure it is fully seated in the hole. Apply a small amount of adhesive inside the installed anchor.

Screw the eyebolt (with the hex nut and washer) into the installed shield anchor. Keep turning the eyebolt to pull the threaded wedge further up into the shield anchor which pushes the four sides of the anchor against the walls of the drilled hole.

Maximum spacing between Eye bolt and Shield Anchor Corner Hardware is 50 feet. For runs longer than 50 feet, install multiple Eye bolt and Shield Anchor Corner Hardware along the path of the cable. Each of the eye bolts (for this hardware) will hold at least 1 large, 2 medium or 3 small turnbuckle hooks or 2 connection thimbles.

Get a quote
Professional box
Dimension
M6 x 40 Ø10 600 pcs.
M8 x 50 Ø14 300 pcs.
M10 x 60 Ø16 200 pcs.
M12 x 80 Ø20 100 pcs.
M16 x 125 Ø25 30 pcs.
Reinforced concrete
Reinforced concrete
Concrete
Concrete
Stone
Stone
Solid brick
Solid brick
Air conditioning
Air conditioning
Aerial
Aerial
Park bench
Park bench
Handrails
Handrails
Balcony handrail
Balcony handrail
Motorway railing
Motorway railing
Wooden guardrail
Wooden guardrail
Tent/Marquee
Tent/Marquee
