Omega Bracket for Stone Cladding Fixing System
A precision-manufactured omega bracket for stone facade dry-hanging systems, designed for controlled installation adjustment and coordinated use with approved anchors, rails, clips, and project-specific fixing details.
Product Overview

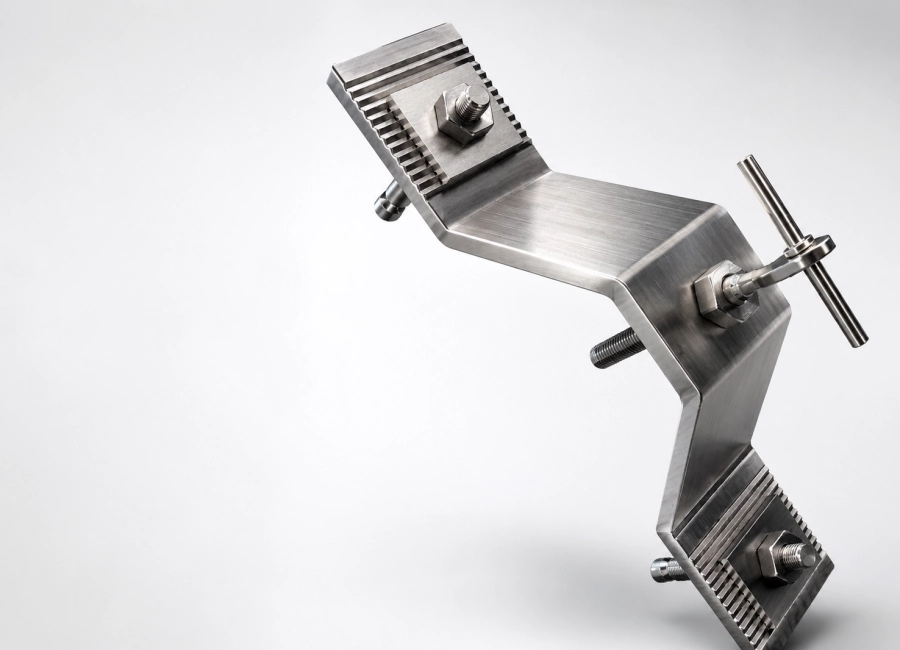

The WISINE Omega Bracket is a stone cladding fixing component used to connect and position stone panels in dry-hanging facade systems. Final bracket specification should follow project drawings, panel weight, substrate condition, and engineering requirements.
Recommended for natural stone, engineered stone, granite, marble, limestone, and other cladding panel assemblies when specified by the project engineer.
In stone curtain wall and ventilated facade applications, bracket accuracy affects panel flatness, installation tolerance, safety, and long-term service performance. WISINE supplies omega brackets for facade contractors, stone fabricators, distributors, and procurement teams that need dependable industrial hardware.
The bracket can be manufactured in stainless steel 304 / 316 for common stone cladding applications. Stainless steel 316 is recommended for exterior, humid, or coastal environments when required. Galvanized steel or carbon steel should be used only when corrosion protection and project conditions are confirmed, while aluminum alloy is suitable only for specific design requirements.
For complete fixing systems, WISINE can also support matching anchors, bolts, washers, stone clips, support rails, shims, and related facade accessories.
Core Advantages & Material Options
Built for controlled stone panel fixing, drawing-based customization, and consistent supply for facade and curtain wall projects.
Project-Based Fixing
Omega-shaped bracket geometry can be configured according to panel layout, fixing method, substrate condition, and engineer-approved drawings.
Corrosion-Resistant Options
Stainless steel, galvanized steel, aluminum alloy, and protected finishes can be discussed for exterior environments according to project documents.
Accurate Installation
Round holes, slotted holes, and project-specific patterns help contractors adjust alignment on site.
Procurement Ready
Quotation can be based on drawings, material grade, finish, certificate needs, quantity, and matching parts.
Specifications
The parameters below are organized for real purchasing inquiries. Final specification should be confirmed according to drawings, panel weight, substrate condition, installation method, and engineering requirements.
Need the full technical datasheet?
View Omega Bracket datasheet resources for installation reference, parameter selection and quotation discussion.
Omega Bracket Technical Specification Reference
The following values are reference data for quotation discussion and preliminary product selection. Final bracket size, load review, fixing method and installation approval should be confirmed by the project engineer or responsible design party.
PMR Reference Series
| Reference Type / Designation | V Range / Cavity Range (mm) | Bracket Height H (mm) | Bracket Width W (mm) | Reference Load Data (kg) | Pin Diameter Ø (mm) | Adjustable Threaded Rod | Plug / Anchor Size |
|---|---|---|---|---|---|---|---|
| PMR 20 | 35–45 | 20 | 30 | 100 | 5 | M10×60 | M8 |
| PMR 30 | 45–65 | 30 | 30 | 100 | 5 | M10×70 | M8 |
| PMR 40 | 55–80 | 40 | 30 | 100 | 5 | M10×70 | M8 |
| PMR 60 | 75–100 | 60 | 30 | 100 | 5 | M10×70 | M8 |
PR 3 H Reference Series
| Reference Type / Designation | V Range / Cavity Range (mm) | Bracket Height H (mm) | Bracket Width W (mm) | Reference Load Data (kg) | Pin Diameter Ø (mm) | Adjustable Threaded Rod | Plug / Anchor Size |
|---|---|---|---|---|---|---|---|
| PR 3 H 00 | 30–45 | 3 | 40 | 65 | 5 | M10×50 | M8 |
| PR 3 H 10 | 35–55 | 10 | 30 | 65* | 5 | M10×50 | M8 |
| PR 3 H 15 | 40–60 | 15 | 30 | 65* | 5 | M10×50 | M8 |
| PR 3 H 20 | 45–65 | 20 | 30 | 65* | 5 | M10×50 | M8 |
| PR 3 H 30 | 55–75 | 30 | 30 | 65* | 5 | M10×50 | M8 |
| PR 3 H 40 | 65–95 | 40 | 30 | 54* | 5 | M10×60 | M8 |
| PR 3 H 50 | 75–105 | 50 | 30 | 54* | 5 | M10×60 | M8 |
| PR 3 H 60 | 86–116 | 61 | 30 | 54* | 5 | M10×60 | M8 |
| PR 3 H 70 | 96–136 | 71 | 30 | 45* | 5 | M10×70 | M8 |
| PR 3 H 80 | 106–146 | 81 | 30 | 45* | 5 | M10×70 | M8 |
| PR 3 H 90 | 116–156 | 91 | 30 | 45* | 5 | M10×70 | M8 |
| PR 3 H 100 | 126–166 | 101 | 30 | 45* | 5 | M10×70 | M8 |
| PR 3 H 110 | 136–176 | 111 | 30 | 45* | 5 | M10×70 | M8 |
| PR 3 H 120 R | 145–185 | 120 | 30 | 24 | 5 | M10×70 | M8 |
| PR 3 H 130 R | 155–195 | 130 | 30 | 24 | 5 | M10×70 | M8 |
| PR 3 H 140 R | 165–205 | 140 | 30 | 24 | 5 | M10×70 | M8 |
The values above are reference data for quotation discussion and preliminary product selection. Final bracket size, load review, fixing method and installation approval should be confirmed by the project engineer or responsible design party.
Omega Bracket RFQ Information Table
| Inquiry Item | Available Options | Information to Provide |
|---|---|---|
| Material Grade | Stainless steel 304 / 316, galvanized steel, carbon steel, aluminum alloy | 304 / 316 for common stone cladding applications; 316 recommended for exterior, humid, or coastal environments when required. Galvanized steel or carbon steel only when corrosion protection and project conditions are confirmed; aluminum alloy only for specific design requirements. |
| Thickness | According to drawing or project requirement | Specified thickness, panel weight, bracket spacing, fixing method, or engineering drawing |
| Surface Finish | Passivated, brushed, galvanized, anodized, powder coated, plain mill finish | Finish requirement, color code if coated, and outdoor or indoor use |
| Hole Type | Round holes, slotted holes, countersunk holes, customized punching or drilling | Hole diameter, slot size, center distance, and fastener size |
| Drawing Support | Production according to PDF, DWG, DXF, sample, or confirmed sketch | 2D drawing, 3D file, sample photos, tolerance requirement, and quantity |
| Certificate | Material certificate, inspection report, coating report or certificate of conformity can be discussed when required | Required document list before quotation or before shipment |
| Matching Parts | Anchors, bolts, nuts, washers, stone clips, support rails, shims, spacers | Whether you need brackets only or a complete fixing kit |
| Packing and Delivery | Carton, pallet, labeled project packing, export packing | Order quantity, destination country, delivery schedule, and shipping preference |
Typical Applications
Suitable for stone facade and cladding projects where concealed fixing, alignment control, and long-term stability are required.

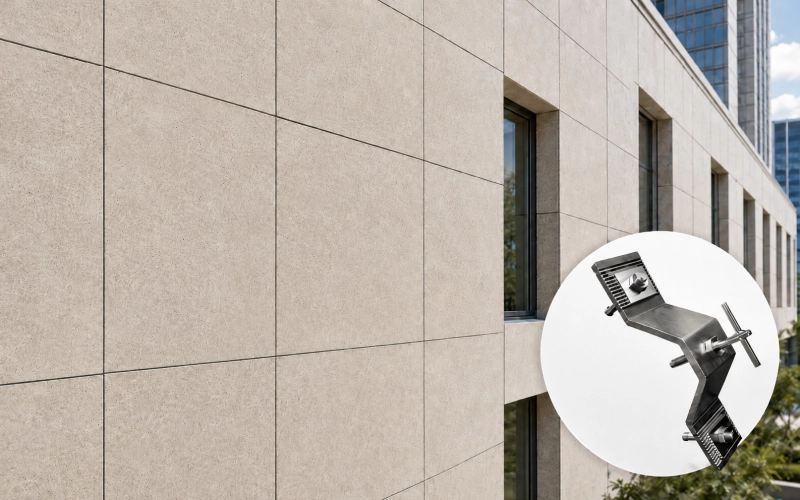

Exterior Stone Facades
Commercial buildings, hotels, towers, and public projects using dry-hung stone cladding systems.

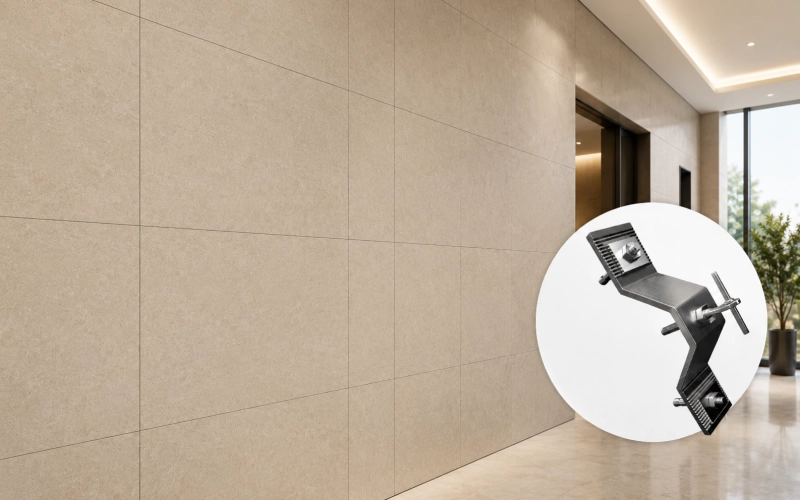

Interior Stone Walls
Lobby walls, elevator areas, atriums, and premium interior cladding with concealed mechanical fixing.

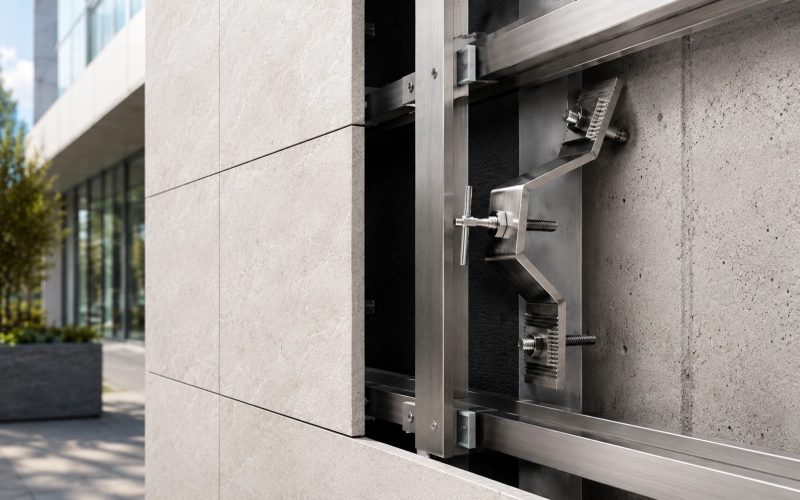

Ventilated Cladding Systems
Rainscreen and back-ventilated facade assemblies requiring bracket, rail, and anchor coordination.
Installation Guidance
This information is for specification discussion only. Final installation must follow approved shop drawings and local engineering requirements.
Confirm Layout
Review panel size, joint design, bracket spacing, anchor positions, and tolerance requirements.
Prepare Substructure
Install anchors, rails, or base plates according to approved drawings and verified substrate strength.
Adjust Brackets
Position omega brackets, align holes or slots, and tighten fasteners according to project requirements.
Set Stone Panels
Install stone panels, check level and joint consistency, then complete final inspection before handover.
FAQ
Common questions from contractors, facade consultants, distributors, and purchasing teams.
What information is needed to quote an Omega bracket?
Please prepare the bracket designation if available, V range or cavity requirement, bracket height and width, material grade, thickness, hole type, hole diameter, slot size or slot direction, adjustable threaded rod size, pin diameter, plug or anchor size, surface finish, quantity, matching hardware and certificate requirements.
Can Omega brackets be customized according to drawings?
Yes. Omega brackets can be discussed according to PDF, DWG, DXF, samples, photos or confirmed sketches. Feasibility and quotation review depend on drawing clarity, material grade, dimensions, quantity, finish and document requirements.
Can V range or bracket height be selected from reference data?
Reference series such as PMR or H designations can be used for preliminary quotation discussion, but V range, height, width and reference load data should be confirmed against the original technical source, project drawings and engineering review before order discussion.
Can the hole pattern or slot size be customized?
Hole pattern, hole diameter, slot size and slot direction can be discussed according to drawings or samples. Final manufacturability and quotation should be confirmed according to material, thickness, tooling route, quantity and inspection requirements.
Can WISINE supply matching threaded rods, anchors, nuts and washers?
Yes. Matching threaded rods, anchors, bolts, nuts, washers, clips, rails, shims and spacers can be discussed with the Omega bracket so the fixing package can be reviewed together according to project drawings.
Can material certificates be provided?
Material certificates, inspection documents, coating documents and traceability requirements can be discussed when required. Certificate availability and document scope should be confirmed before quotation or production.
Who should confirm final load review and installation approval?
WISINE can support product and RFQ review, but final load calculation, bracket selection, fixing method and installation approval should be confirmed by the project engineer or responsible design party according to project conditions and local requirements.
Omega Bracket RFQ Checklist
Prepare the key details below before quotation so WISINE can review the Omega bracket specification against drawings and project requirements.
Bracket Reference
Bracket type or designation, V range or cavity requirement, bracket height and width, thickness, hole type, hole diameter, slot size and slot direction.
Hardware Matching
Adjustable threaded rod size, pin or dowel diameter, plug or anchor size, matching bolts, nuts, washers, shims and spacers required for the fixing package.
Materials & Documents
Material grade, surface finish, quantity, certificate or inspection document requirements, drawing files in PDF / DWG / DXF format, sample photos or confirmed sketches.
Matching Hardware & Related Products
WISINE can supply Omega Brackets together with matching anchors, rails, clips, bolts, washers, and custom facade fixing hardware according to project drawings.
Installation details should be confirmed against project drawings, bracket specification, substrate conditions and quotation requirements before order discussion.
Send Your Omega Bracket Drawing for a Quote
Share your Omega bracket drawing, material grade, thickness, bend profile, hole details, quantity and required certificates. WISINE can help review the specification and prepare a practical export quotation for your stone cladding fixing system.
