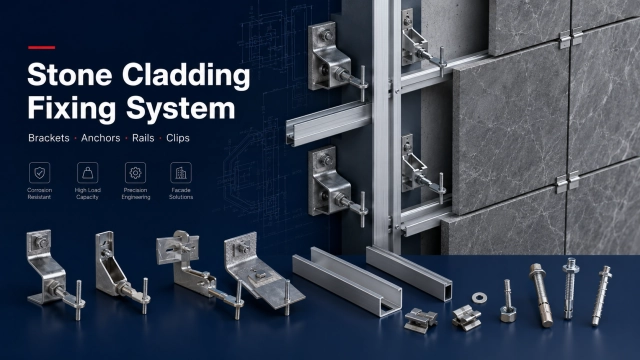

Stone Cladding Fixing System
Stone cladding fixing hardware including L brackets, Z bracket, Omege racket, body anchors, rails, clips, anchors, bolts, washers and custom facade hardware. WISINE supports material grade, finish and drawing-based RFQ review according to project requirements.
Stone Cladding Fixing System Overview
WISINE stone cladding fixing systems are used to connect, support, position, and restrain natural stone panels in exterior facades, ventilated cladding systems, and interior stone wall installations.
Final specification should be confirmed according to project drawings, panel weight, substrate condition, installation method, and local engineering requirements.
A complete fixing system may include brackets, body anchors, stone clips, support rails, anchors, bolts, nuts, washers, shims, spacers, and custom fixing hardware.
Each component should be selected according to the stone panel size, panel weight, substrate condition, installation method, projection requirement, material grade, and approved project drawings.
WISINE supports both standard product supply and drawing-based customization. Whether the project requires individual brackets or a complete fixing kit, we can help review specifications, match related hardware, and prepare a practical quotation for project discussion.
Stone Cladding Fixing Product Categories
Explore the main product categories used in WISINE stone cladding fixing systems. Each component can be supplied individually or matched as part of a complete fixing kit according to project drawings.
Omega Bracket
Commonly used where adjustable bracket geometry, projection control, hole layout and drawing-based review need to be confirmed before quotation.
Z Bracket
Can be reviewed for compact fixing spaces, offset requirements or drawing-defined bracket geometry where hole pattern, thickness and material grade must be confirmed.
L Bracket / Angle Bracket
Suitable for right-angle connection, substructure support, auxiliary fixing and rail or bracket interface requirements, subject to project drawing review.
Body Anchor Bracket
Can be reviewed for restraint or anchoring configurations where body anchor geometry, slot detail and fixing method must be checked against project drawings.
Stone Clip / Stone Clamp
Commonly used for panel positioning, concealed fixing support, auxiliary restraint and installation coordination, with final selection confirmed by project details.
Support Rail / U Channel Rail
Suitable for rail-based fixing interfaces, repeated bracket positions, alignment control and coordinated fastener or anchor matching according to drawings.
Anchors, Bolts, Nuts & Washers
Used to match bracket, rail, clip and substrate fixing points according to material, size, thread, washer and certificate requirements before quotation.
Custom Facade Fixing Hardware
For non-standard brackets, clips, rails, shims, spacers and special fixing accessories based on drawings, samples or project-specific review requirements.

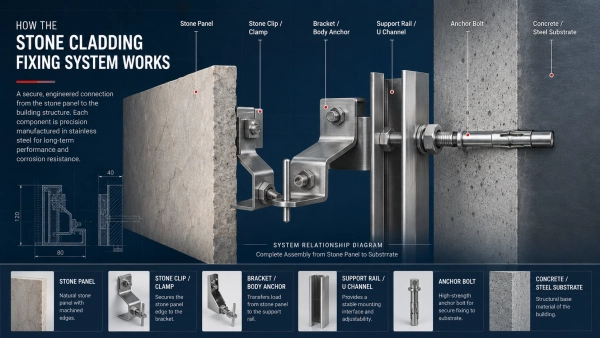

How the Stone Cladding Fixing System Works
A stone cladding fixing system should be reviewed as a complete assembly, not just as individual hardware components.
Confirm Stone Panel Layout
Review stone panel size, thickness, weight, joint layout, edge details, and installation tolerance requirements.
Select Brackets and Rails
Choose suitable Omega brackets, Z brackets, L brackets, body anchors, or support rails according to project drawings and fixing configuration.
Match Clips, Anchors and Fasteners
Confirm stone clips, anchors, bolts, nuts, washers, shims, spacers, and other matching hardware according to substrate condition and installation method.
Produce According to Drawings
Manufacture or supply components according to approved drawings, material grade, surface finish, packing, and document requirements.
Final bracket selection, load review, fixing method and installation approval should be confirmed by the project engineer or responsible design party according to project conditions and local requirements.
Typical Applications
WISINE stone cladding fixing systems are suitable for facade and wall projects where stone panel stability, concealed fixing, installation adjustment, and long-term system reliability are required.

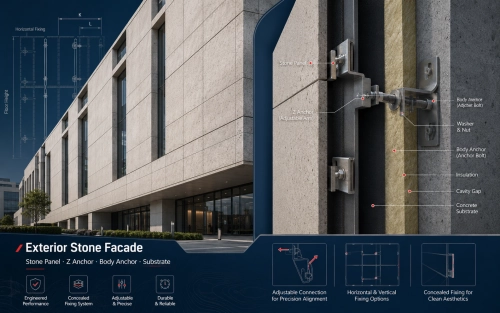

Exterior Stone Facades
Used for commercial buildings, hotels, towers, public buildings, and premium architectural envelopes requiring natural stone cladding.

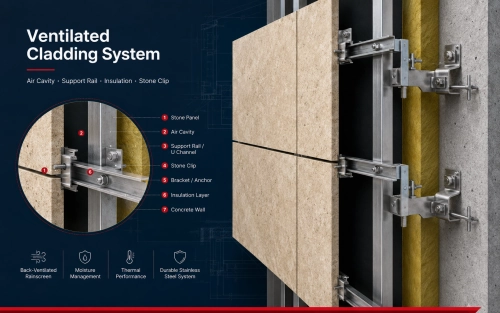

Ventilated Cladding Systems
Suitable for rainscreen and back-ventilated facade assemblies where brackets, rails, anchors, and stone clips are coordinated as a system.

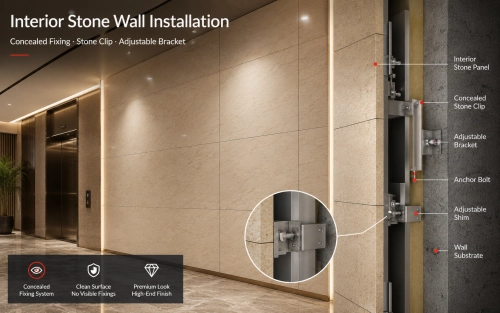

Interior Stone Wall Installations
Used for lobby walls, elevator cores, atriums, and interior stone wall projects requiring concealed mechanical fixing.

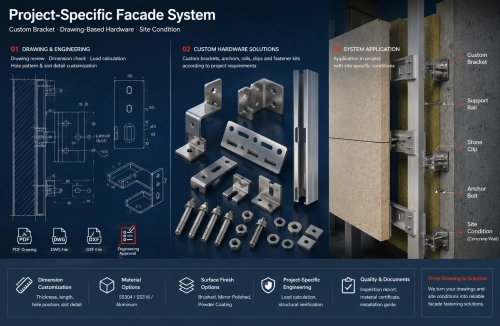

Project-Specific Facade Systems
Suitable for custom facade fixing projects where standard components need to be adjusted according to drawings and installation conditions.
Material & Finish Options
Material selection should consider the service environment, corrosion requirement, bracket type, substrate condition, and project specification.
| Material Option | Typical Use |
|---|---|
| Stainless Steel 304 | General stone cladding applications where moderate corrosion resistance is required. |
| Stainless Steel 316 | Exterior, humid, coastal, or more demanding environments where higher corrosion resistance is required. |
| Galvanized Steel | Cost-sensitive projects where corrosion protection and service conditions are confirmed. |
| Hot-Dip Galvanized Steel | Outdoor steel components requiring heavier zinc coating protection. |
| Aluminum Alloy | Lightweight facade systems or project-specific rail and profile designs. |
| Custom Material | Project-specified material according to approved drawings or engineering requirements. |
Final material and surface finish should be confirmed according to approved project drawings, exposure condition, corrosion requirement, and local engineering requirements.
Product Selection Guide
Use the guide below to quickly identify the suitable product category for your stone cladding fixing project.
| Project Requirement | Recommended Product Category |
|---|---|
| Need bracket support for stone cladding | Omega Bracket / Z Bracket / L Bracket |
| Need right-angle fixing or substructure connection | L Bracket / Angle Bracket |
| Need adjustable body anchor fixing | Body Anchor Bracket |
| Need stone panel positioning or auxiliary restraint | Stone Clip / Stone Clamp |
| Need rail-based fixing interface | Support Rail / U Channel Rail |
| Need matching anchors and fasteners | Anchors, Bolts, Nuts & Washers |
| Need project-specific non-standard hardware | Custom Facade Fixing Hardware |
| Have drawings or samples but unsure how to select | Send Drawing for Quote |
Technical Support & Downloads
WISINE can provide product information, material options, project quotation support, and technical datasheets for stone cladding fixing system discussions.
Need a Stone Cladding Fixing System Overview?
Use WISINE resource pages for product category reference, drawing submission preparation, standards review and quotation preparation before project discussion.
| RFQ Item | Information to Confirm |
|---|---|
| Project drawings | PDF, DWG, DXF, sketches, samples, or project documents for bracket, rail, clip, anchor, and fastener review. |
| Stone panel details | Panel size, thickness, approximate panel weight, joint layout, edge detail, and installation method. |
| Fixing hardware | Bracket type, anchor type, bolt and washer requirements, hole pattern, slot detail, and adjustment requirement. |
| Material and finish | Material selection should be confirmed according to service environment, corrosion requirement, and project documents. |
| Documents | Certificate availability should be confirmed before quotation, including material certificates, inspection reports, or coating documents when required. |
| Quantity and delivery discussion | Availability is subject to material availability, quantity, processing requirements and document requirements. |

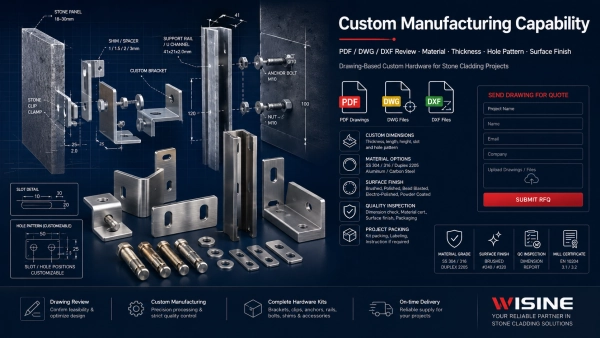

Custom Manufacturing Capability
For projects that require non-standard brackets, custom clips, special rails, body anchors, or matching fastener kits, WISINE can support drawing-based manufacturing and project-specific supply.
Customers can provide PDF drawings, DWG/DXF files, sample photos, physical samples, or confirmed sketches. WISINE can review the specification, confirm manufacturing feasibility, discuss material and finish options, and prepare a practical quotation.
Custom production can cover brackets, clips, anchors, rails, bolts, washers, shims, spacers, restraints, and other facade fixing accessories.
Capability points: PDF / DWG / DXF drawing review, material grade confirmation, thickness and dimension customization, hole pattern and slot detail customization, surface finish options, project packing, and inspection documents when required.
Explore Stone Cladding Fixing Products
Select a product category below to review detailed product information, technical parameters, application notes, and quotation requirements.
FAQ
Common questions from facade contractors, stone fabricators, distributors, and project purchasing teams.
What information is needed to select a stone cladding fixing system?
Prepare project drawings, stone panel size and thickness, approximate panel weight, bracket or rail layout, substrate condition, material grade, surface finish, quantity, certificate requirements and destination details. Final selection should be confirmed according to project drawings and engineering requirements.
Can WISINE support drawing-based custom brackets?
Yes. Custom brackets, clips, rails, shims, spacers and special facade fixing accessories can be discussed according to PDF, DWG, DXF, samples, photos or confirmed sketches. Feasibility and quotation review depend on drawing clarity, material grade, quantity and document requirements.
Which material is commonly used for exterior stone facade fixing hardware?
Stainless steel 304 and 316 are commonly used for stone cladding fixing hardware. Stainless steel 316 is often discussed for exterior, humid, coastal or more demanding environments. Final material selection should follow project specifications, exposure conditions and local requirements.
Can WISINE supply matched fixing kits instead of single parts?
Matched fixing kits can be discussed for brackets, clips, rails, anchors, bolts, nuts, washers, shims, spacers and related accessories. The final kit list should be confirmed according to project drawings, packing needs and quotation review.
Can adjustment range be customized?
Adjustment details can be discussed for brackets, slots, hole patterns, projection and rail interfaces, but no fixed adjustment range should be assumed without verified product data and project drawings. Required adjustment should be confirmed before quotation.
Can WISINE provide material certificates or inspection documents?
Material certificates, inspection documents, coating documents and traceability requirements can be discussed when required. Certificate availability and document scope should be confirmed before quotation or production.
How should lead time be confirmed?
Lead time should be confirmed before quotation or order discussion because it depends on material, quantity, drawing complexity, processing route, finish, inspection requirements and document requirements. No fixed lead time should be assumed without project review.
Who should confirm final load review and installation approval?
WISINE can support product and RFQ review, but final load calculation, bracket selection, fixing method and installation approval should be confirmed by the project engineer or responsible design party according to project conditions and local requirements.
Need a Stone Cladding Fixing System for Your Project?
Send your drawings, stone panel details, material grade, bracket requirements, quantity, and project location. WISINE will help review the fixing configuration and prepare a practical quotation discussion according to project requirements.
