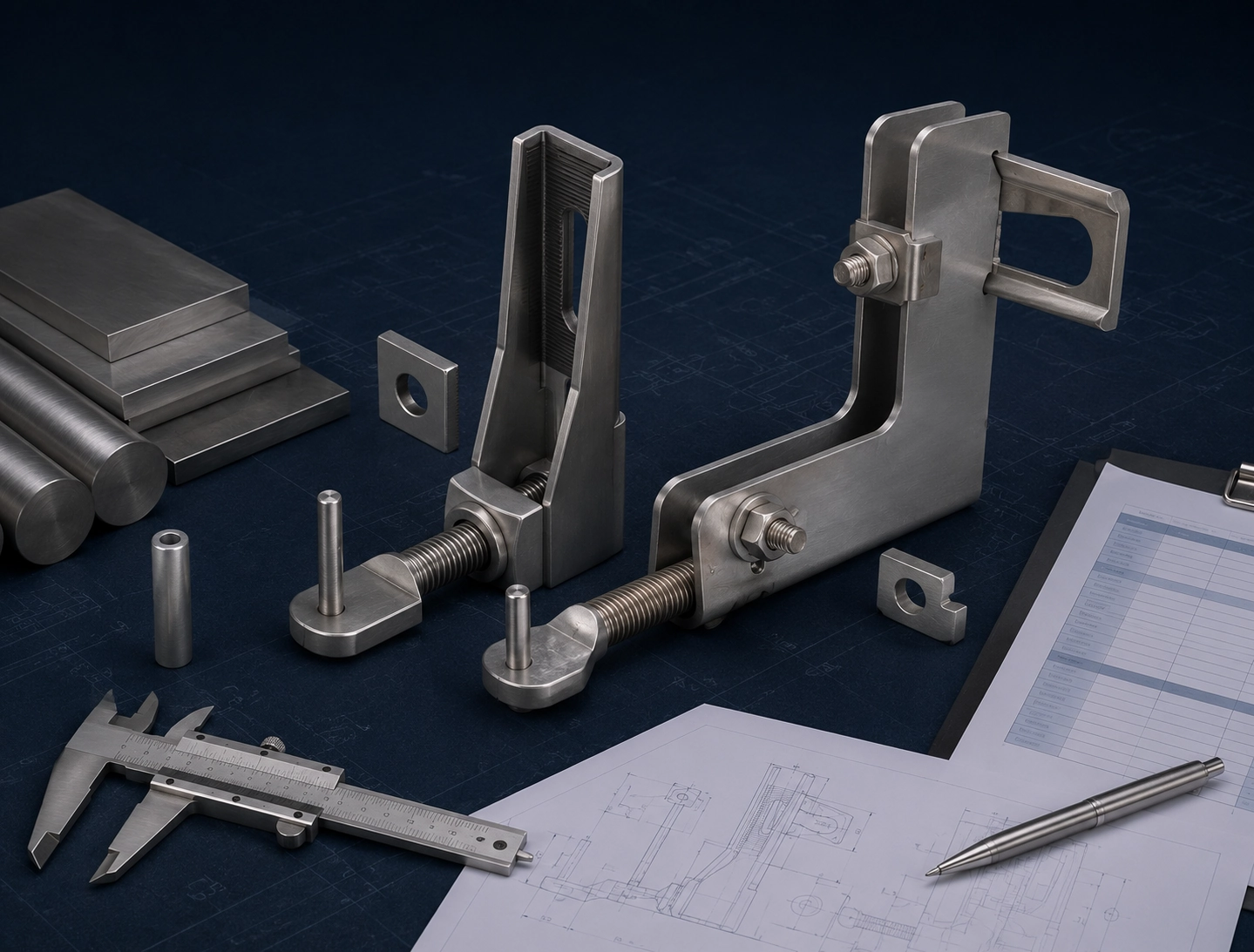

Body Anchor Bracket for Stone Cladding Fixing System
Body anchor brackets for stone cladding projects where adjustable restraint, anchoring configuration, stone panel positioning, threaded rod, pin, sleeve and anchor plug coordination must be reviewed according to project drawings, material grade, finish, quantity and documentation requirements.
Product Overview
The WISINE Body Anchor Bracket is a stone cladding fixing component used where a body anchor or restraint detail is required between the stone panel, fixing hardware and supporting structure.
Final bracket selection, load review, fixing method and project suitability should be confirmed according to project drawings, stone panel details, substrate condition and responsible design review.
A Body Anchor Bracket is commonly reviewed where a stone cladding fixing point needs a body anchor or restraint component connected with threaded rods, pins, plastic sleeves, anchor plugs, nuts, washers and related fixing hardware.
Compared with a general support bracket, the inquiry often depends on anchor body geometry, slot detail, pin interface, threaded rod size, plug or anchor size and the stone panel fixing method. WISINE can review these details according to drawings, samples or confirmed project requirements.
Body anchor brackets can be discussed as individual components or as part of a matched fixing package. Final selection should remain project-specific and should be confirmed according to stone panel details, substrate condition and engineering requirements.
Material Options and Core Advantages
Built for stone cladding projects where controlled adjustment, stable fixing performance, and drawing-based customization are required. Stainless steel 304, 316, 316L, and project-specified materials can be reviewed before quotation.
Standard & Serrated Options
Standard and serrated bracket configurations can be discussed to support different fixing details and project system requirements.
Adjustable Installation Support
Suitable for body anchor fixing systems where installation adjustment, alignment control, and dependable restraint are important.
Drawing-Based Production
Bracket shape, dimensions, thickness, fixing details, hole type, projection range, and interface geometry can be customized according to approved drawings.
Complete System Matching
Can be supplied together with anchor bolts, hex bolts, rails, clips, restraints, and other related stone cladding fixing accessories.
Technical Parameters
The parameters below are organized for Body Anchor Bracket quotation review. Final specification should be confirmed according to project drawings, stone panel details, substrate condition and engineering requirements.
Need product reference documents?
Review available datasheets and quotation preparation guidance before sending drawings. Certificate availability should be confirmed before quotation.
Body Anchor Bracket Specification Items to Confirm
| Specification Item | Available Options / Reference | Information to Confirm |
|---|---|---|
| Product type / designation | Body Anchor Bracket for stone cladding fixing systems | Confirm product type, project use and designation according to drawing or sample. |
| Body anchor geometry | Confirm according to drawing | Anchor body shape, restraint form, interface detail and any standard or serrated requirement. |
| Material grade | Stainless steel 304 / 316 / 316L, project-specified stainless steel or other confirmed material | Required grade, service environment and project document requirement. |
| Thickness | Confirm according to drawing | Required thickness, tolerance and whether sample or drawing controls the final dimension. |
| Bracket height / width | Confirm according to drawing | Overall height, width, length and any body anchor projection requirement. |
| V range or cavity requirement | Confirm according to project fixing detail | Cavity distance, projection condition, stone panel position and fixing layout. |
| Hole type / slot detail | Round hole, slotted hole, countersunk hole or drawing-defined feature | Hole diameter, slot size, center distance, slot direction and mating hardware. |
| Pin / dowel pin diameter | Confirm according to drawing | Pin size, interface with stone panel and sleeve or insert detail. |
| Adjustable threaded rod size | Confirm according to drawing or fixing package | Thread size, length, adjustment requirement and matching nut / washer requirement. |
| Plastic sleeve requirement | Confirm according to stone fixing detail | Sleeve size, material requirement and whether sleeve is included in the fixing package. |
| Anchor plug / fixing hardware | Anchor plug, threaded rod, nut, washer, bolt or project-specified hardware | Plug / anchor size, substrate condition and matching hardware list. |
| Surface finish | Mill finish, passivated, brushed, galvanized or project-specified finish | Finish requirement, indoor / exterior use and corrosion environment. |
| Matching nuts, washers, shims and spacers | Can be discussed as part of the fixing package | Whether the quotation should include bracket only or matched hardware. |
| Certificate / inspection document requirements | Material certificate, inspection document or coating document can be discussed where required | Required document scope should be confirmed before quotation or production. |
| Drawing file format | PDF, DWG, DXF, STEP, sample, sketch or marked photo | Provide the clearest available drawing or sample reference for quotation review. |
Final bracket selection, load review, fixing method and project suitability should be confirmed according to project drawings, stone panel details, substrate condition and responsible design review.

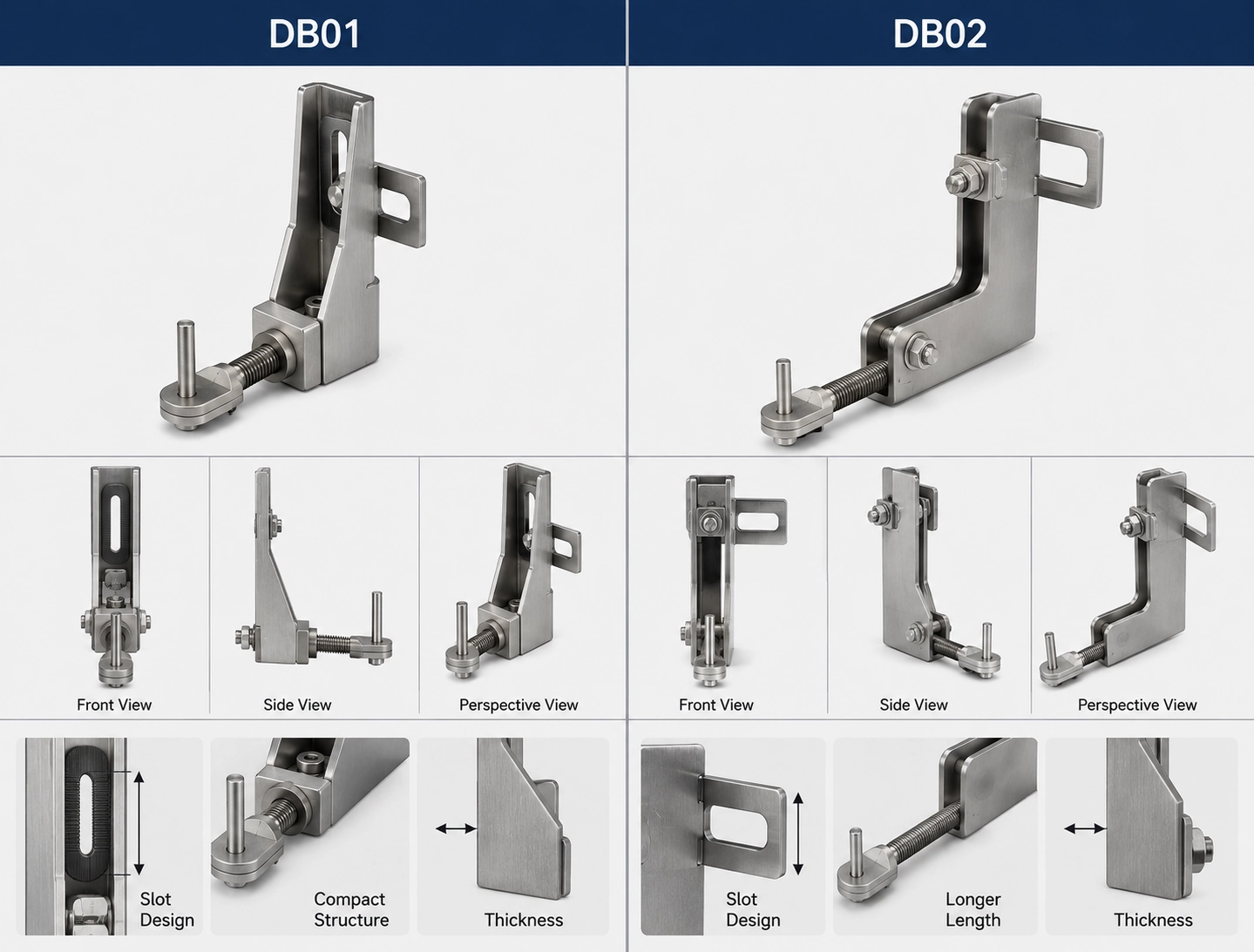

DB01 / DB02 Body Anchor Bracket Reference Data
The following DB01 and DB02 values are reference data for quotation discussion and preliminary product selection. Final bracket selection, load review, fixing method and project suitability should be confirmed according to project drawings, stone panel details, substrate condition and responsible design review.
DB01 Reference Series
| Item No. | T (mm) | A (mm) | B (mm) | N (mm) | Pin | Slot |
|---|---|---|---|---|---|---|
| DB01-1 | 2.0 | 30 | 100 | 30 | 5×60 | 8.5×28 |
| DB01-2 | 2.0 | 30 | 100 | 50 | 5×60 | 8.5×28 |
| DB01-3 | 2.0 | 30 | 100 | 70 | 5×60 | 8.5×28 |
DB02 Reference Series
| Item No. | T (mm) | A (mm) | B (mm) | N (mm) | Pin | Slot |
|---|---|---|---|---|---|---|
| DB02-1 | 3.0 | 30 | 120 | 70 | 5×60 | 10.5×28 |
| DB02-2 | 3.0 | 30 | 120 | 90 | 5×60 | 10.5×28 |
| DB02-3 | 3.0 | 30 | 120 | 110 | 5×60 | 10.5×28 |
| DB02-4 | 3.0 | 30 | 120 | 130 | 5×60 | 10.5×28 |
| DB02-5 | 3.0 | 30 | 120 | 150 | 5×60 | 10.5×28 |
| DB02-6 | 3.0 | 30 | 120 | 170 | 5×60 | 10.5×28 |
The values above are reference data for quotation discussion only. Final dimensions, fixing method, matching hardware and project suitability should be confirmed according to project drawings and responsible design review.
Body Anchor Bracket RFQ Information Table
| Inquiry Item | Information to Provide |
|---|---|
| Stone panel size and thickness | Stone type, panel size, stone thickness and any edge or groove detail. |
| Approximate panel weight if available | Estimated panel weight or project document reference if already calculated. |
| Substrate condition | Concrete, masonry, steel frame, rail system or other confirmed supporting structure. |
| Fixing layout / installation method | Panel position, fixing point location, cavity requirement and installation method shown on drawing. |
| Required body anchor type | Standard, serrated, sample-based or drawing-defined body anchor configuration. |
| Threaded rod / pin / sleeve / plug requirements | Thread size, pin diameter, sleeve requirement, plug / anchor size and matching hardware list. |
| Material and finish | Material grade, surface finish, indoor / exterior use and corrosion environment. |
| Quantity | Order quantity, trial quantity or project phase quantity. |
| Drawing files | PDF, DWG, DXF, STEP, sample photo, sketch or approved shop drawing. |
| Certificate requirements | Material certificate, inspection document or coating document requirements where needed. |
Typical Applications
Suitable for stone cladding systems where body anchor fixing, panel restraint, and installation adjustment are required.

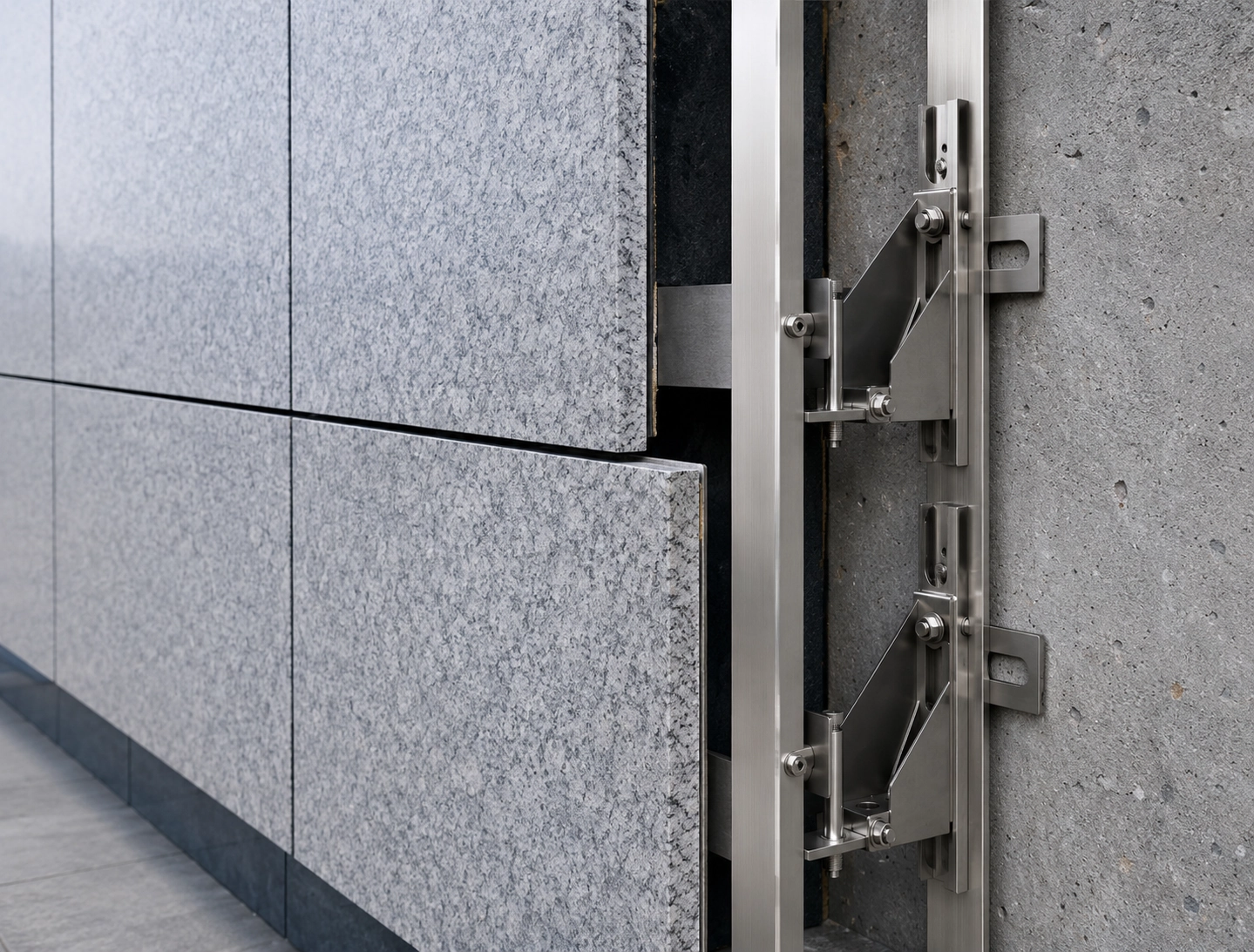

Exterior Stone Facades
Used for natural stone facade applications where body anchor brackets connect stone panels to supporting structures under approved project specifications.

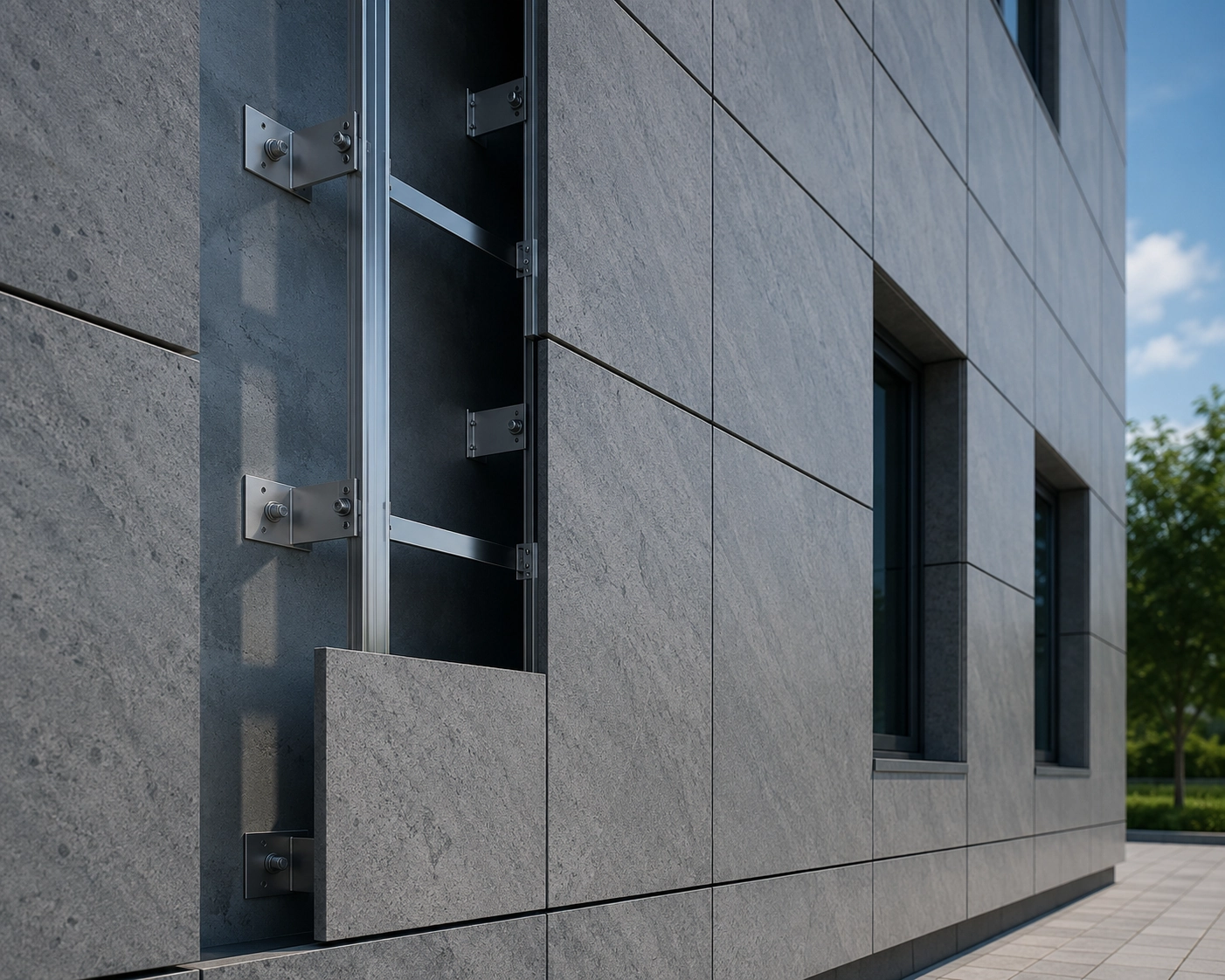

Ventilated Cladding Systems
Suitable for facade systems that require coordinated use of brackets, anchors, and related fixing hardware with installation adjustment.

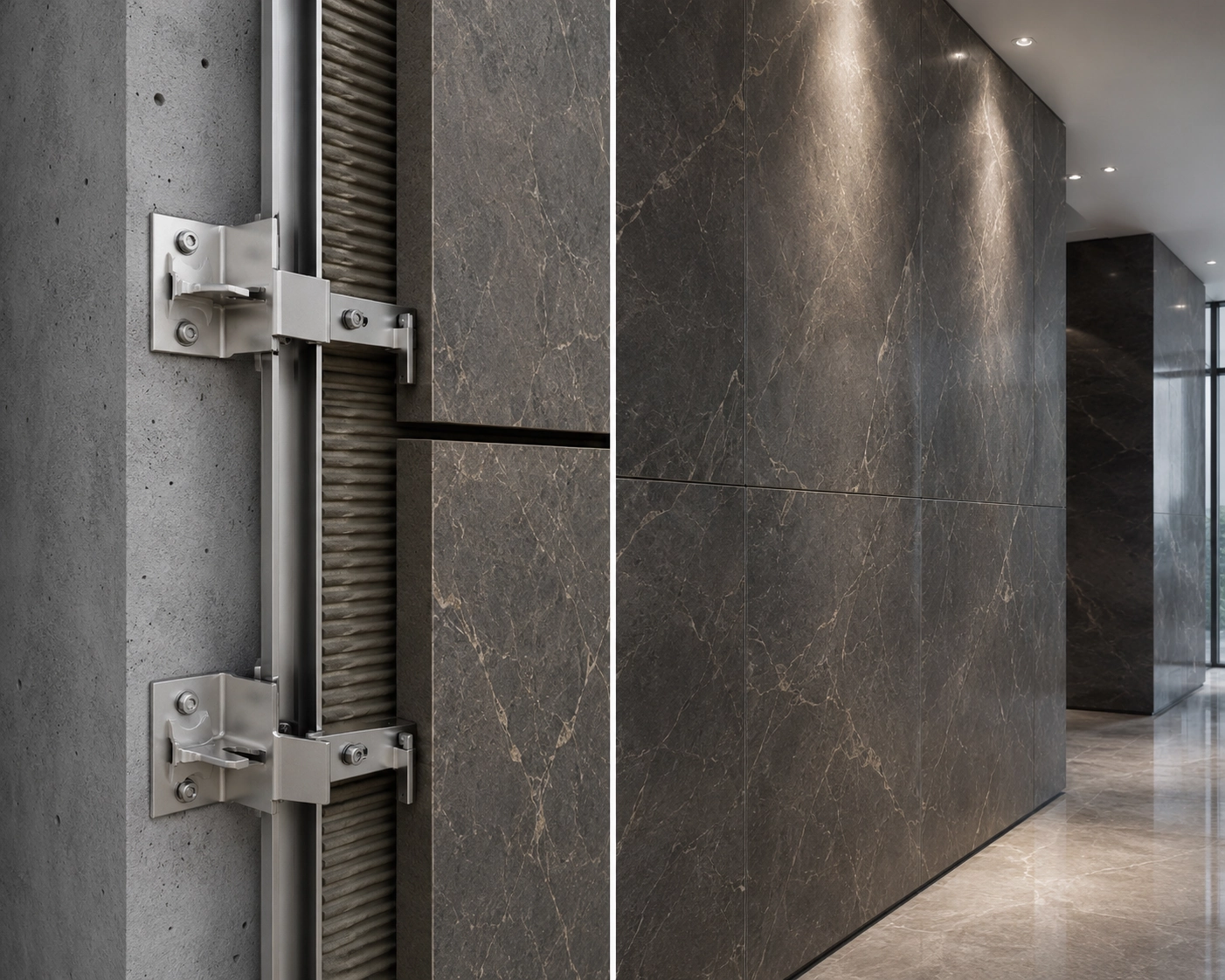

Interior Stone Walls
Can be used in premium interior stone wall projects where concealed fixing and controlled panel alignment are required.

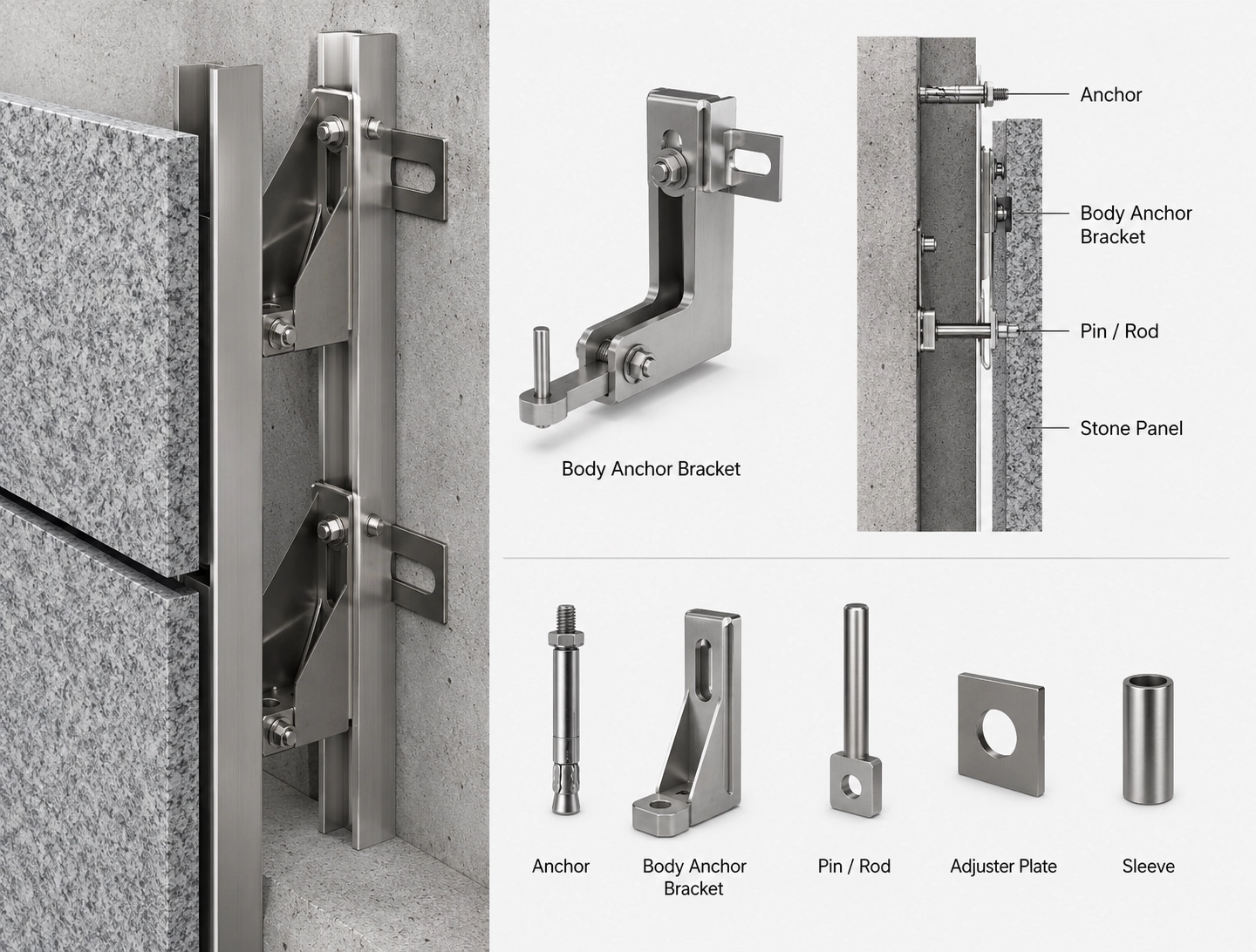

Installation Reference for Quotation Review
This product page is for quotation and specification discussion only and does not replace responsible project review. Final installation should follow project drawings, local requirements and responsible design review.
Review Fixing Layout
Confirm panel dimensions, joint layout, anchor points, cavity condition and bracket arrangement according to project drawings.
Confirm Substrate Condition
Review substrate condition, fixing points and related hardware requirements before quotation or installation planning.
Coordinate Body Anchor Components
Review body anchor geometry, threaded rod, pin, sleeve, plug and matching hardware against the project drawing.
Confirm Final Review Responsibility
Final bracket selection, load review, fixing method and project suitability should be confirmed by the responsible project party.

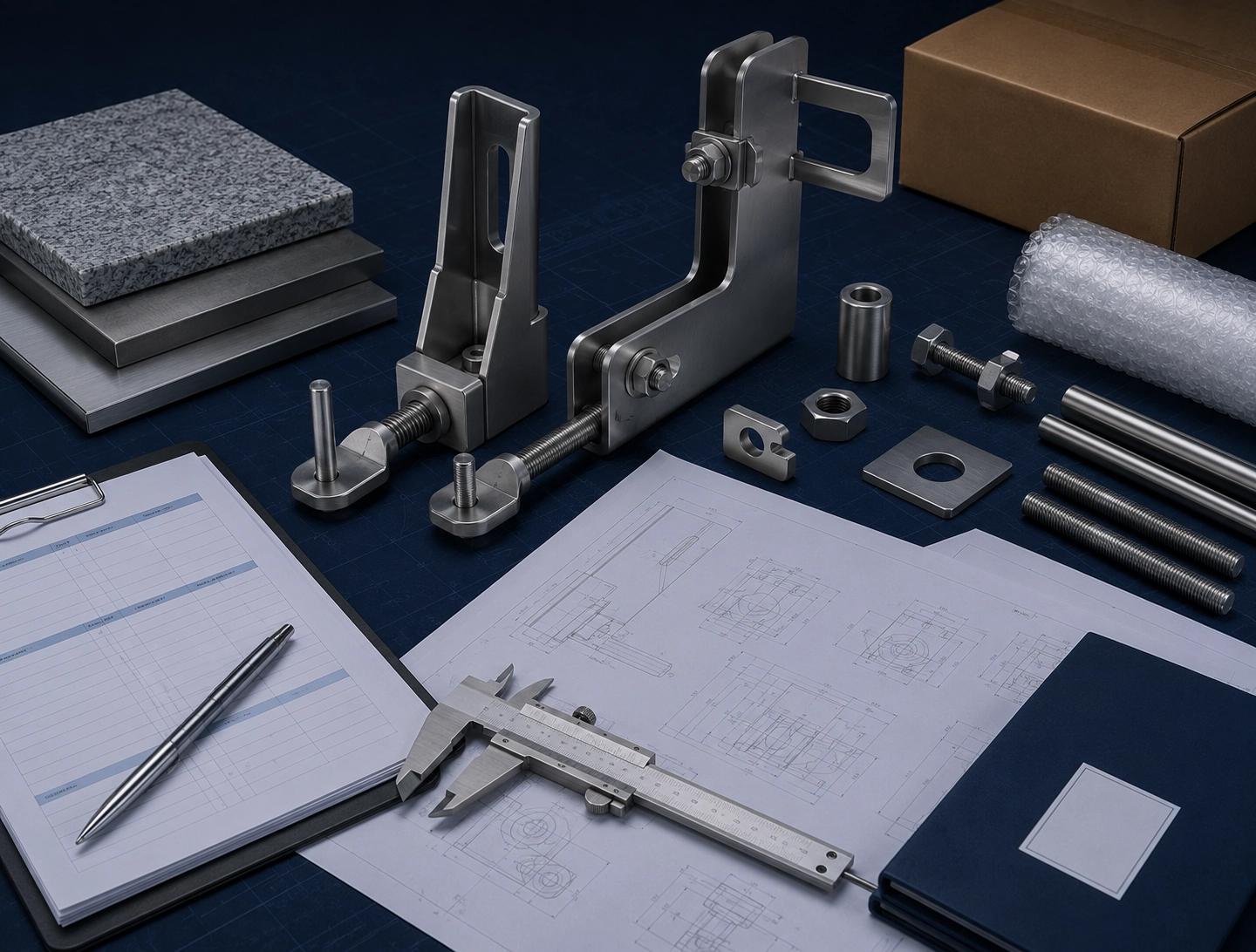

RFQ Checklist
Send the following details when requesting a quotation for standard or serrated body anchor brackets. More complete information helps WISINE review production feasibility, matching hardware, packing, and document requirements.
If drawings are not ready, a sketch, marked photo, or confirmed sample can support the first quotation discussion.
| RFQ Item | Information to Send |
|---|---|
| Drawing or Sketch | Body Anchor Bracket drawing, sketch, sample photo, PDF, DWG, DXF, STEP, or approved shop drawing. |
| Type and Material | Standard or serrated type, stainless steel 304 / 316 / 316L or project-specified material grade. |
| Dimensions | Thickness, width, height, length, bracket geometry, final dimensions according to drawing. |
| Serration Detail | Serration design if required, tooth profile, mating component, adjustment direction, or confirmed sample. |
| Hole and Slot Details | Hole diameter, hole position, center distance, slot requirement, bolt size, and fixing arrangement. |
| Project Conditions | Projection or cavity requirement, stone panel thickness, substrate type, application environment, and installation method. |
| Order and Documents | Quantity, surface finish, certificate requirement, packing requirement, delivery destination, and inspection documents. |
FAQ
Common questions from contractors, facade consultants, distributors, and purchasing teams.
What information is needed to quote a Body Anchor Bracket?
Please prepare body anchor type or designation, drawing files, material grade, thickness, bracket height and width, V range or cavity requirement, hole or slot detail, pin diameter, threaded rod size, sleeve requirement, plug / anchor size, finish, quantity and certificate requirements.
When should a Body Anchor Bracket be selected instead of an Omega Bracket?
A Body Anchor Bracket can be reviewed where project drawings require a body anchor or restraint detail connected with threaded rods, pins, sleeves, plugs or matching anchors. Omega Brackets are usually reviewed for omega-shaped bracket geometry and cavity control. Final selection should be confirmed according to project drawings and engineering requirements.
Can Body Anchor Brackets be customized according to drawings?
Yes. Body Anchor Brackets can be discussed according to PDF, DWG, DXF, STEP files, samples, sketches or marked photos. Feasibility and quotation review depend on drawing clarity, material grade, dimensions, quantity, finish and document requirements.
Which material is commonly used for exterior stone cladding body anchors?
Stainless steel 304, 316 or 316L can be discussed for stone cladding fixing hardware depending on project documents and service environment. Material grade should be confirmed before quotation according to the application, corrosion condition and documentation requirements.
Can threaded rod, pin, sleeve or plug size be customized?
Threaded rod size, pin / dowel pin diameter, sleeve requirement and plug / anchor size can be discussed according to drawings or samples. Final dimensions and matching hardware should be confirmed before quotation.
Can WISINE supply matching threaded rods, pins, sleeves, anchors, nuts and washers?
Yes. Matching threaded rods, pins, sleeves, anchor plugs, anchors, nuts, washers, shims and spacers can be discussed as part of the Body Anchor Bracket fixing package according to project drawings.
Can material certificates or inspection documents be provided?
Material certificates, inspection documents, coating documents and traceability requirements can be discussed where required. Certificate availability and document scope should be confirmed before quotation or production.
Who should confirm final load review and project suitability?
WISINE can support product and RFQ review, but final load calculation, bracket selection, fixing method and project suitability should be confirmed by the responsible project party according to project conditions, project drawings and responsible design review.
Matching Hardware & Related Products
WISINE can supply Body Anchor Brackets together with matching brackets, anchors, bolts, washers, clips, rails, shims, and custom facade fixing hardware according to project drawings.
Send Your Body Anchor Bracket Drawing for a Quote
Share your body anchor bracket drawing, material grade, body anchor geometry, threaded rod, pin, sleeve, plug requirement, finish, quantity and required documents. WISINE can help review the specification and prepare quotation support according to project requirements.
