Z Bracket for Stone Cladding Fixing System
Returned-leg Z-Bracket and DZ01 reference system for stone cladding fixing projects, supporting horizontal joint and vertical joint review, anchor bolt, pin, nut, flat head bolt and plastic tube coordination, and drawing-based quotation discussion according to project requirements.
Product Overview

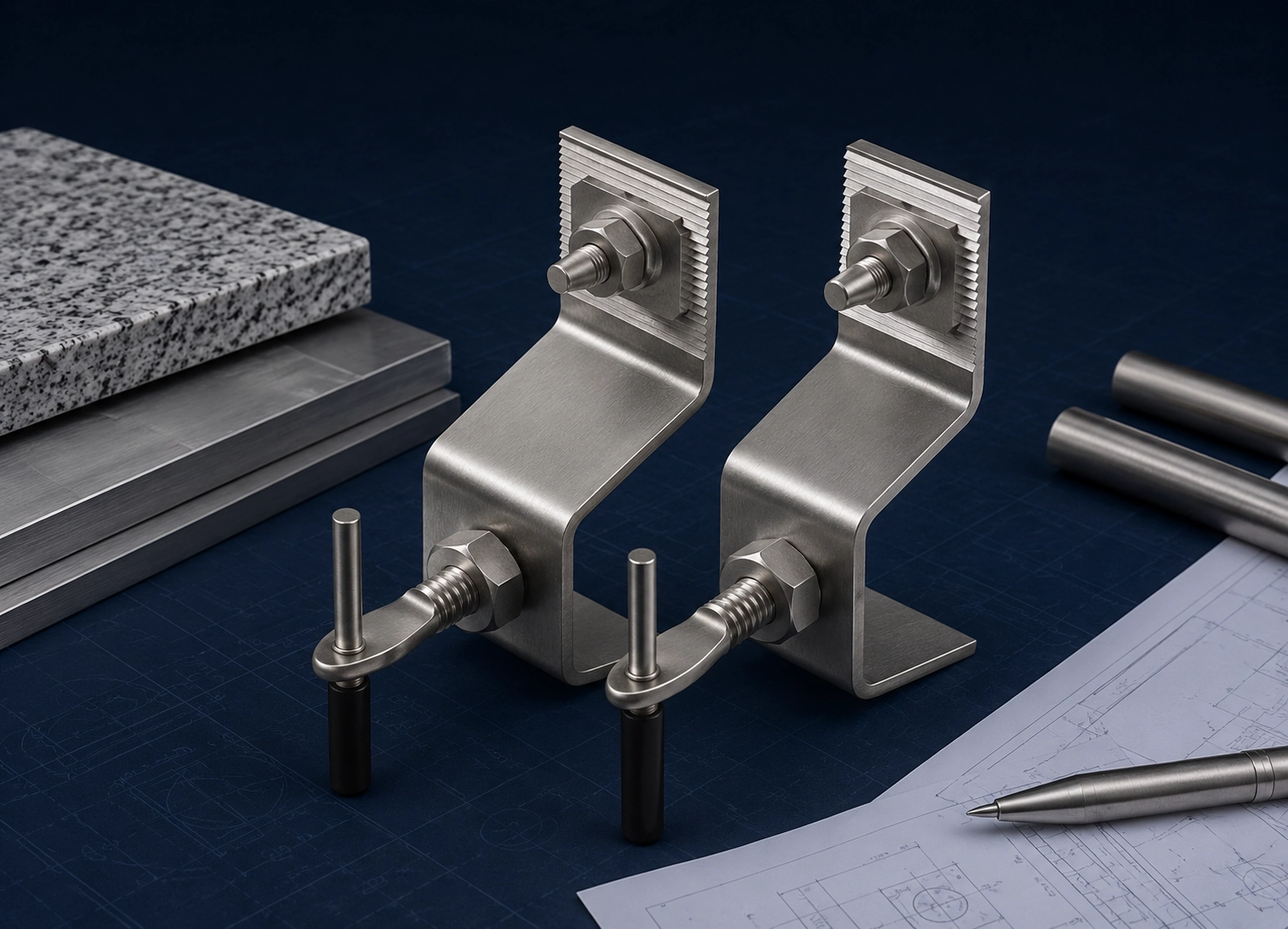

The WISINE Z Bracket is a practical fixing component for stone cladding and ventilated facade systems. Returned-leg Z-bracket configurations such as DZ01 can be reviewed for horizontal joint and vertical joint details where anchor bolts, Z-bracket body, pins, nuts, flat head bolts and plastic tubes must coordinate with project drawings.
Final specification should be confirmed according to project drawings, panel weight, substrate condition, installation method, and local engineering requirements.
In stone curtain wall and dry-hanging applications, bracket geometry, hole position, thickness, offset, pin diameter, slot size and material grade can affect product selection and quotation review. WISINE supports facade contractors, stone fabricators, distributors and procurement teams that need drawing-based Z bracket and fixing hardware discussion.
The bracket can be reviewed in stainless steel, galvanized steel, aluminum alloy, or project-specified materials. Thickness, bending dimensions, slot hole size, hole type, surface finish, quantity and documentation requirements should be confirmed according to approved drawings or confirmed samples.
For complete fixing systems, WISINE can also support matching anchors, bolts, nuts, washers, support rails, stone clips, shims, and related stone cladding fixing accessories.
Core Advantages & Material Options
Built for stone facade projects where bracket accuracy, material reliability, and drawing-based customization are required.
Practical Z-Shaped Design
The Z-shaped profile supports practical connection between stone panels and substructure components in dry-hanging facade systems.
Drawing-Based Customization
Thickness, bending dimensions, offset, hole pattern, slot hole length, material grade, and finish can be customized according to project drawings.
Material Options
Material options can include stainless steel 304 / 316, galvanized steel, aluminum alloy, or other project-specified materials when confirmed.
System Matching Support
Z brackets can be supplied together with anchors, bolts, washers, stone clips, support rails, shims, and related facade fixing hardware.
Specifications
The parameters below are organized for real purchasing inquiries. Final specification should be confirmed according to drawings, panel weight, substrate condition, installation method, and engineering requirements.
Need the full technical datasheet?
View Z Bracket datasheet resources for installation reference, parameter selection, and quotation discussion.
| Inquiry Item | Available Options | Information to Provide |
|---|---|---|
| Product Type | Z bracket / Z anchor for stone cladding fixing system | Application drawing, bracket layout, installation position |
| Material Grade | Stainless steel 304 / 316, galvanized steel, aluminum alloy, project-specified material | Required grade, service environment, corrosion requirement |
| Thickness | According to drawing or project requirement | Specified thickness, load requirement, or engineering drawing |
| Bracket Dimensions | Offset, height, width, bending angle, and slot hole length can be customized | 2D drawing, 3D file, sample photo, or confirmed sketch |
| Hole Type | Round holes, slotted holes, countersunk holes, customized punching or drilling | Hole diameter, slot size, center distance, and fastener size |
| Surface Finish | Passivated, brushed, galvanized, anodized, powder coated, plain mill finish | Finish requirement, outdoor or indoor use, color code if coated |
| Compatible Panels | Granite, marble, limestone, sandstone, engineered stone | Stone type, panel thickness, panel weight, installation method |
| Matching Parts | Anchors, bolts, nuts, washers, stone clips, support rails, shims, spacers | Whether brackets only or complete fixing kit is required |
| Documents | Material certificate, inspection report, coating report, certificate of conformity can be discussed when required | Required document list before quotation or before shipment |
| Packing and Delivery | Carton, pallet, labeled project packing, export packing | Order quantity, destination country, delivery schedule, and shipping preference |

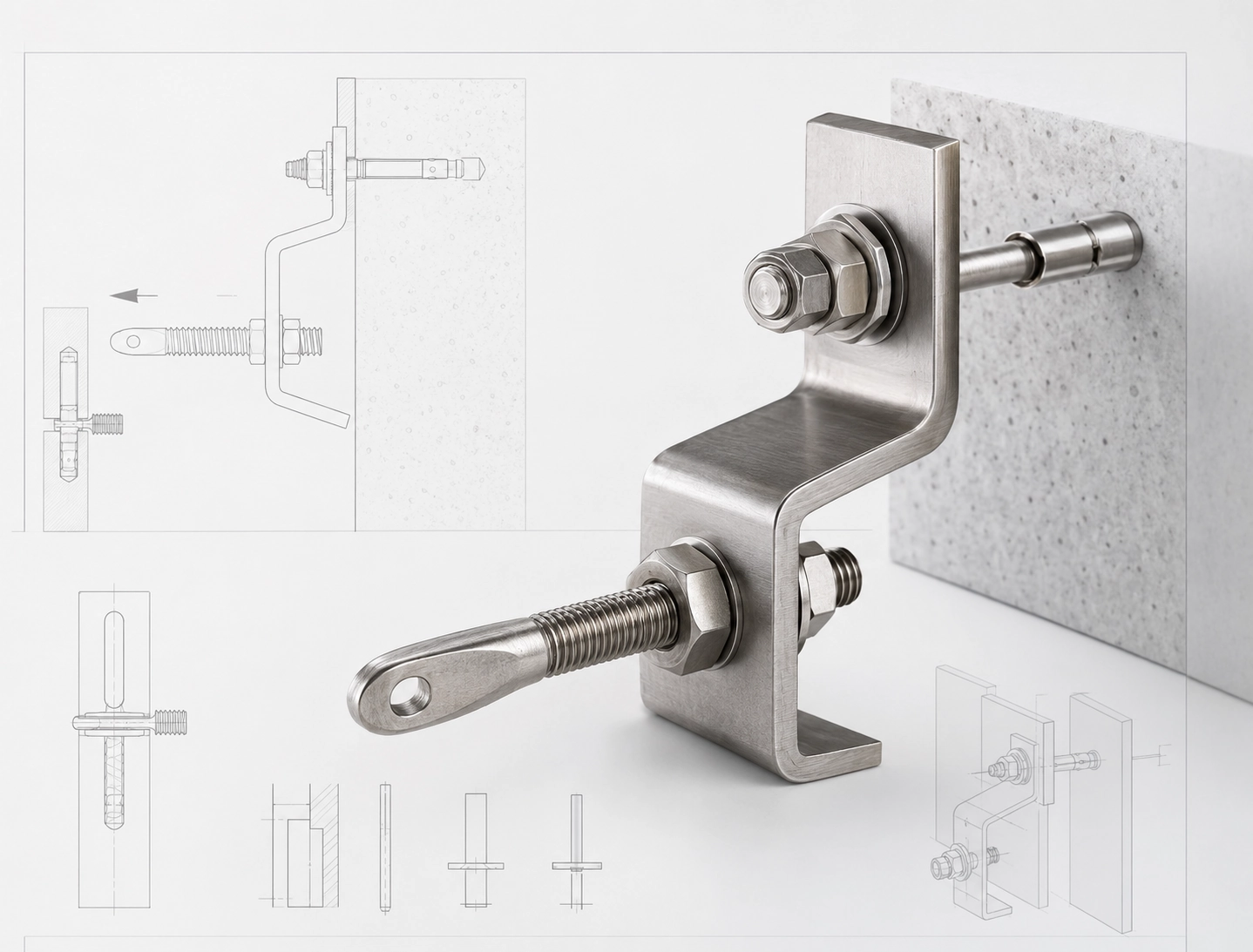

DZ01 Z Bracket Reference Data
The following DZ01 values are reference data for quotation discussion and preliminary product selection. Final bracket selection, load review, fixing method and project suitability should be confirmed according to project drawings, stone panel details, substrate condition and responsible design review.
DZ01 Reference Series
| Item No. | Width W (mm) | Thickness T (mm) | Offset N (mm) | FHB | Pin Ø (mm) | Slot |
|---|---|---|---|---|---|---|
| DZ01-35.3.20 | 35 | 3 | 20 | M8 | 4 | 6.5 x 22 |
| DZ01-40.3.30 | 40 | 3 | 30 | M8 | 4 | 6.5 x 22 |
| DZ01-45.3.40 | 45 | 3 | 40 | M8 | 4 | 6.5 x 22 |
| DZ01-50.3.50 | 50 | 3 | 50 | M8 | 4 | 6.5 x 22 |
| DZ01-40.4.20 | 40 | 4 | 20 | M10 | 5 | 8.5 x 22 |
| DZ01-40.4.30 | 40 | 4 | 30 | M10 | 5 | 8.5 x 22 |
| DZ01-45.4.40 | 45 | 4 | 40 | M10 | 5 | 8.5 x 22 |
| DZ01-50.4.50 | 50 | 4 | 50 | M10 | 5 | 8.5 x 22 |
| DZ01-40.5.20 | 40 | 5 | 20 | M12 | 6 | 8.5 x 22 |
| DZ01-45.5.30 | 45 | 5 | 30 | M12 | 6 | 8.5 x 22 |
| DZ01-45.5.40 | 45 | 5 | 40 | M12 | 6 | 8.5 x 22 |
| DZ01-50.5.50 | 50 | 5 | 50 | M12 | 6 | 8.5 x 22 |
DZ01 Reference Load Data
| Bracket Offset O (mm) | Cavity to Pin Range (mm) | Reference Dead Load DL (kN) | Reference Wind Load WL ± (kN) | Bracket Width (mm) | Bracket Thickness T (mm) | Pin Ø (mm) | FHB | Anchor Combination Force (kN) |
|---|---|---|---|---|---|---|---|---|
| 20 | 50–60 | 0.16 | 0.21 | 35 | 3 | 4 | M8 | 1.90 |
| 30 | 60–70 | 0.16 | 0.21 | 40 | 3 | 4 | M8 | 2.00 |
| 40 | 70–80 | 0.16 | 0.21 | 45 | 3 | 4 | M8 | 2.10 |
| 50 | 80–90 | 0.16 | 0.21 | 50 | 3 | 4 | M8 | 2.10 |
| 60 | 90–100 | 0.16 | 0.21 | 40 | 4 | 4 | M8 | 2.10 |
| 70 | 100–110 | 0.16 | 0.21 | 40 | 4 | 4 | M8 | 2.10 |
| 20 | 50–60 | 0.28 | 0.37 | 40 | 4 | 5 | M10 | 3.40 |
| 30 | 60–70 | 0.28 | 0.37 | 40 | 4 | 5 | M10 | 3.60 |
| 40 | 70–80 | 0.28 | 0.37 | 45 | 4 | 5 | M10 | 3.60 |
| 50 | 80–90 | 0.28 | 0.37 | 50 | 4 | 5 | M10 | 3.70 |
| 60 | 90–100 | 0.28 | 0.37 | 50 | 4 | 5 | M10 | 3.70 |
| 70 | 100–110 | 0.28 | 0.37 | 55 | 4 | 5 | M10 | 3.80 |
| 20 | 50–60 | 0.45 | 0.66 | 40 | 5 | 6 | M12 | 6.00 |
| 30 | 60–70 | 0.45 | 0.66 | 45 | 5 | 6 | M12 | 6.00 |
| 40 | 70–80 | 0.45 | 0.66 | 45 | 5 | 6 | M12 | 6.10 |
| 50 | 80–90 | 0.45 | 0.66 | 50 | 5 | 6 | M12 | 6.20 |
| 60 | 90–100 | 0.45 | 0.66 | 55 | 5 | 6 | M12 | 6.30 |
| 70 | 100–110 | 0.45 | 0.66 | 60 | 5 | 6 | M12 | 6.30 |
The values above are reference data for quotation discussion and preliminary product selection only. If loads are higher or dimensions are different, individual project calculation and responsible design review are required. Final load review, bracket selection, fixing method and project suitability should be confirmed by the responsible project party.
Z Bracket Component Reference

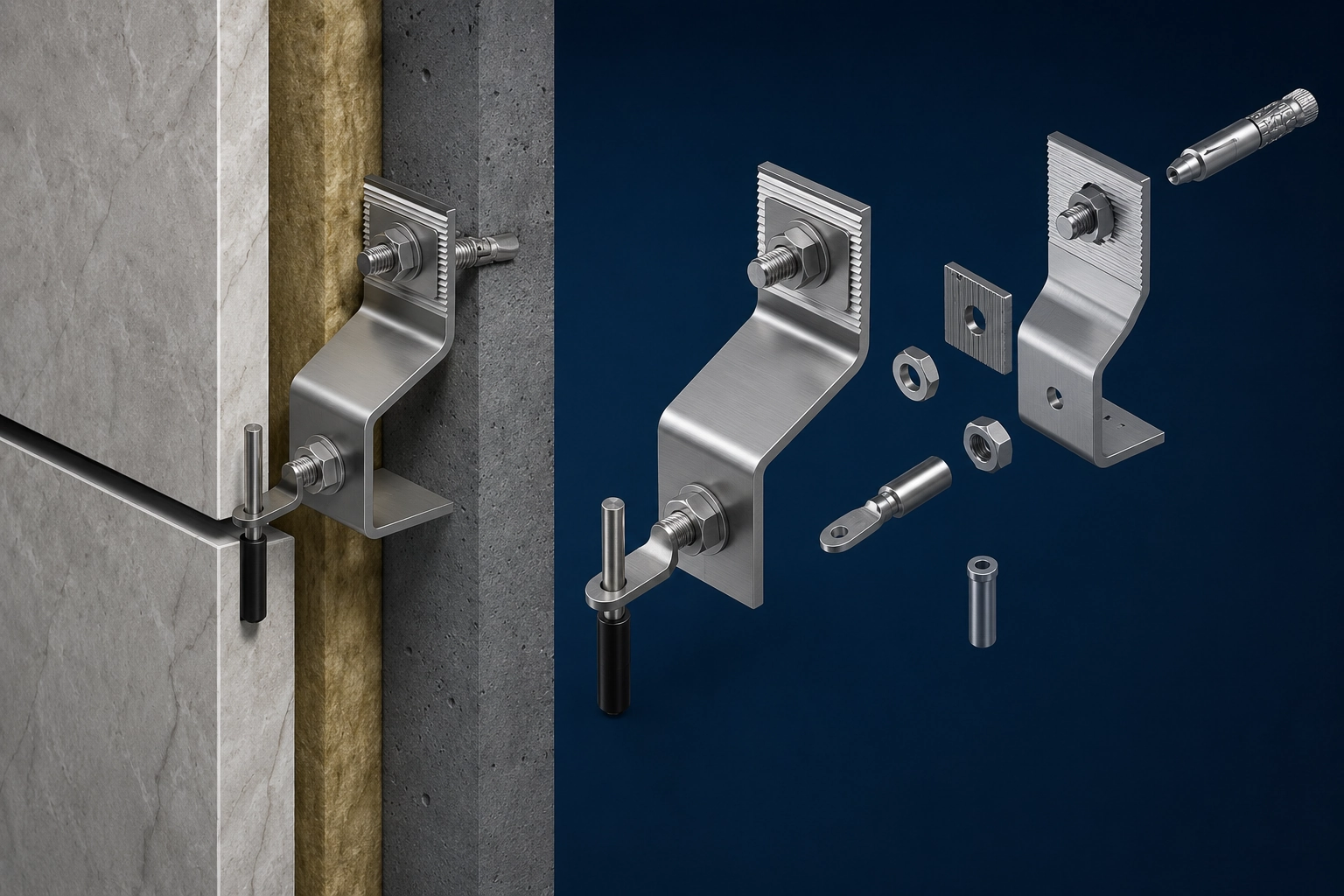

A returned-leg Z-bracket fixing detail may include anchor bolts, the Z-bracket body, pin, nut, flat head bolt and plastic tube. Component selection and quantity should be confirmed according to the project drawing and fixing method.
- Anchor bolt
- Z-bracket
- Pin
- Nut
- Flat head bolt
- Plastic tube
Typical Applications
Suitable for stone facade and cladding projects where bracket positioning, concealed fixing, and system coordination are required.

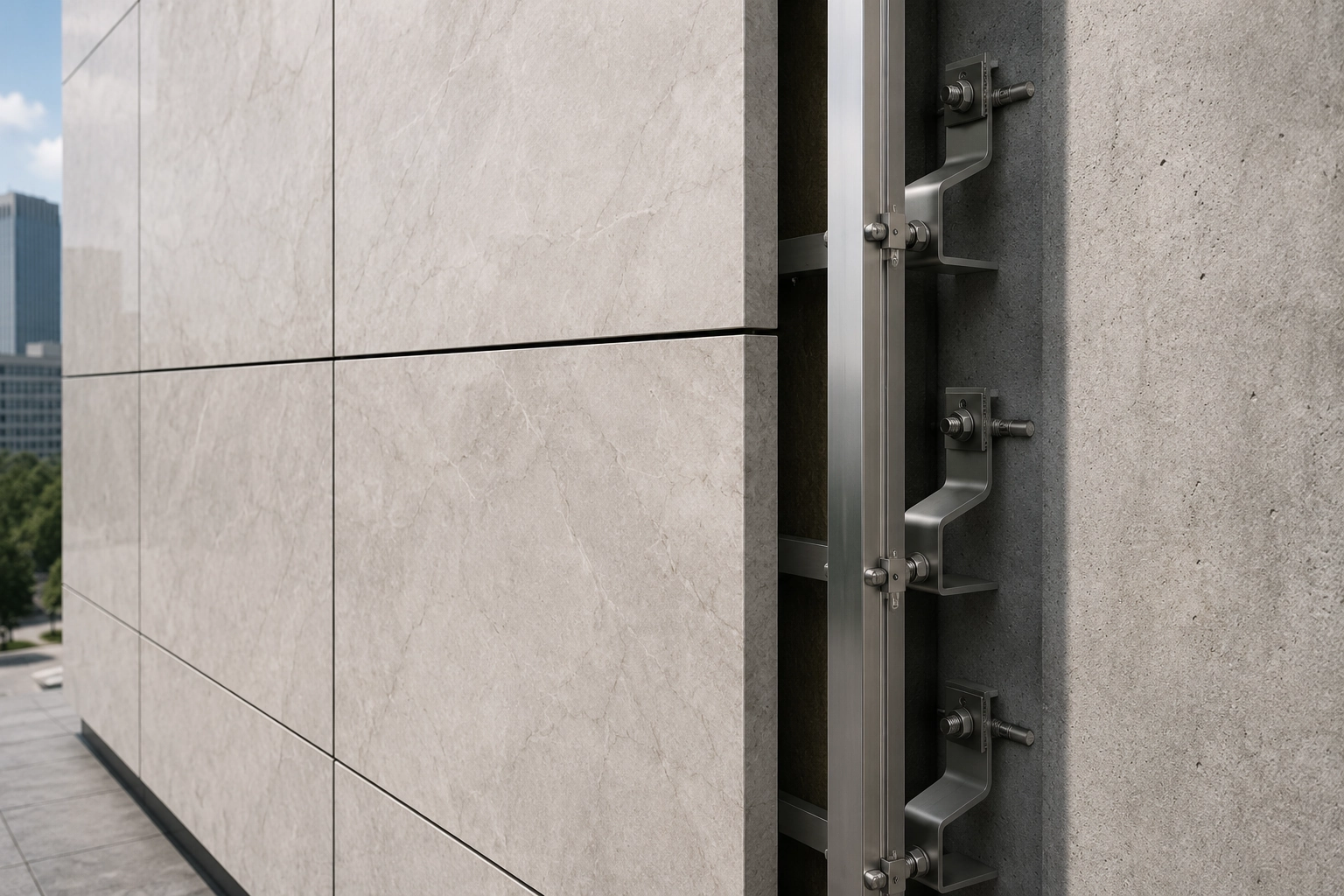

Exterior Stone Facades
Commercial buildings, hotels, towers, and public projects using dry-hung stone cladding systems.

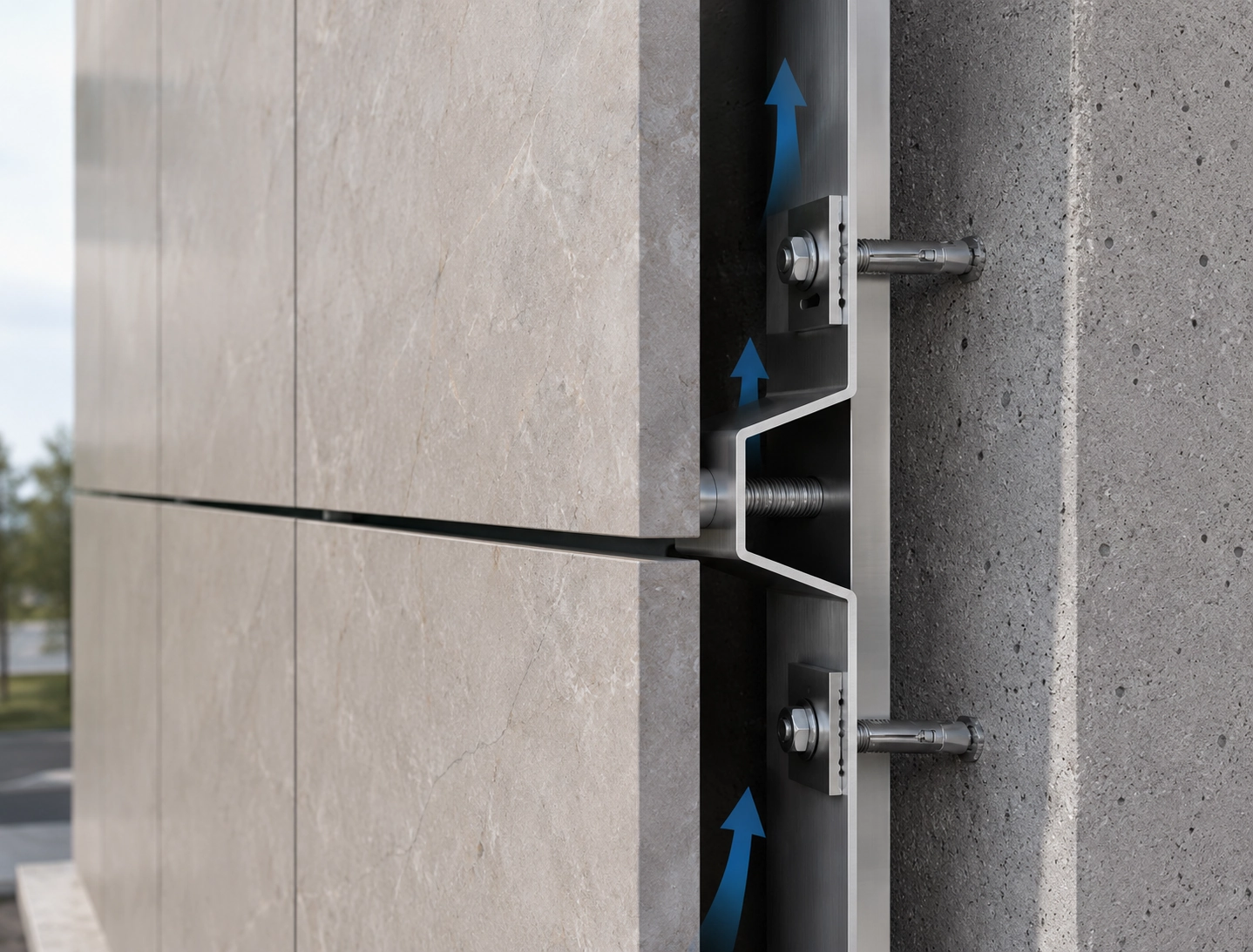

Ventilated Cladding Systems
Rainscreen and back-ventilated facade assemblies requiring bracket, rail, and anchor coordination.

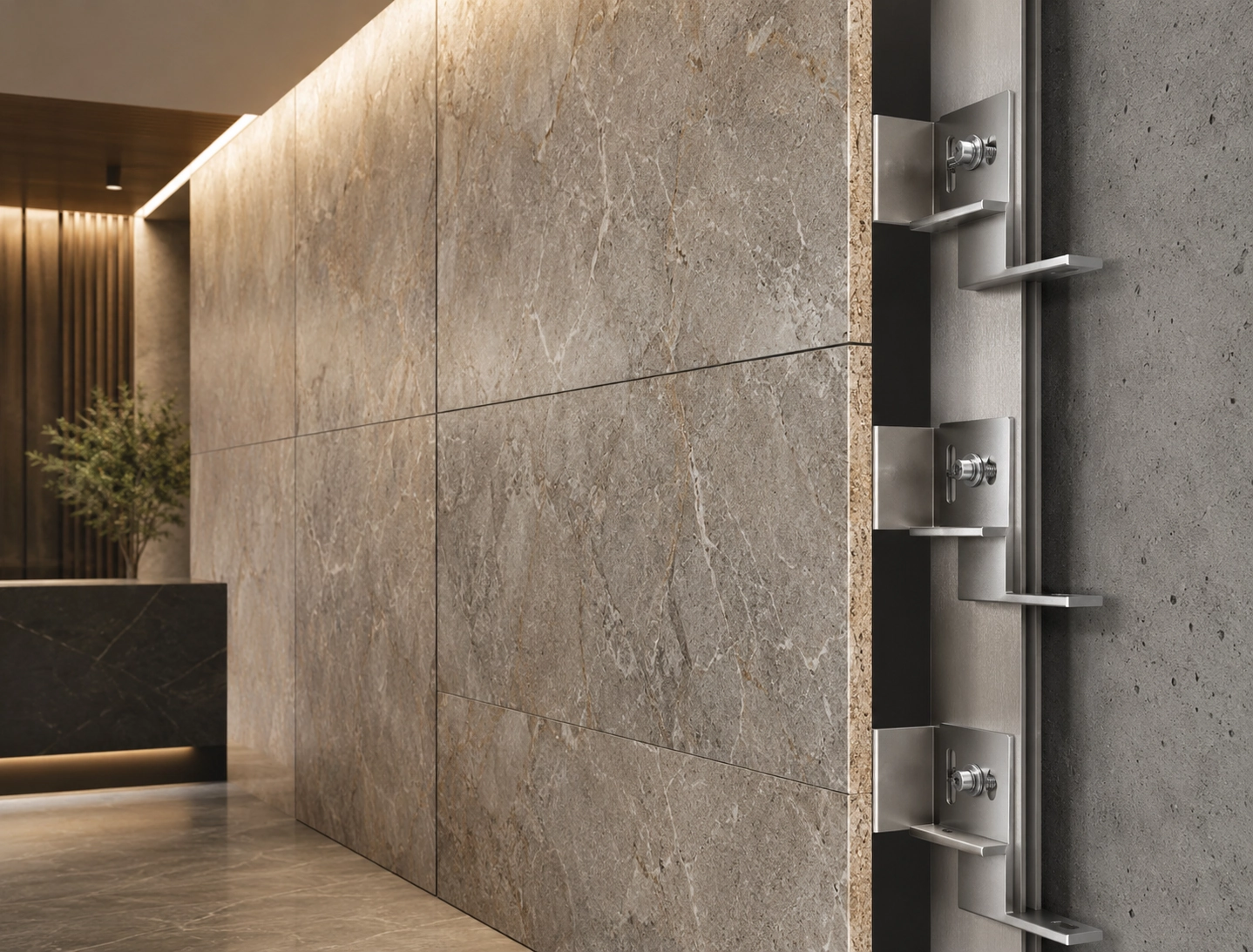

Interior Stone Walls
Lobby walls, elevator areas, atriums, and premium interior cladding with concealed mechanical fixing.
Installation Reference
Installation should follow approved shop drawings, site conditions, and local engineering requirements. The process below is a general reference for specification discussion only.
Confirm Layout
Review panel size, joint design, bracket spacing, anchor positions, and tolerance requirements before production or installation.
Prepare Substructure
Install anchors, rails, base plates, or supporting members according to approved drawings and verified substrate strength.
Position Z Brackets
Align the Z brackets with the required fixing points, hole positions, or slots, and adjust according to project requirements.
Set Stone Panels
Install stone panels, check level and joint consistency, then complete final inspection before sealing or handover.
FAQ
Common questions from contractors, facade consultants, distributors, and purchasing teams.
What information is needed to quote a Z Bracket?
Please provide the bracket designation or drawing, joint type, width, thickness, offset, slot size, pin diameter, FHB size, material grade, finish, quantity, matching hardware and document requirements. DZ01 values can be used as reference data for quotation discussion only.
What is a Z-Bracket with Returned Leg?
A returned-leg Z-bracket is a fixing component used in stone cladding systems where the bracket geometry returns toward the fixing point. The detail can be reviewed for horizontal joint or vertical joint applications according to project drawings.
Can DZ01 dimensions be selected from reference data?
DZ01 dimensions can be reviewed as reference data for preliminary product selection and RFQ preparation. Final dimensions and suitability should be confirmed before quotation according to drawings, stone panel details, substrate condition and engineering requirements.
Can Z Brackets be customized according to drawings?
Yes. WISINE can review PDF, DWG, DXF, samples or confirmed sketches for custom Z brackets. Thickness, offset, slot detail, hole position, material grade and finish should be confirmed before quotation.
Can horizontal joint and vertical joint details be reviewed?
Yes. Horizontal joint and vertical joint fixing details can be reviewed for quotation discussion when the drawing shows cavity range, panel thickness, pin position, anchor bolt position and related hardware requirements.
Can WISINE supply matching anchor bolts, pins, nuts, flat head bolts and plastic tubes?
Matching hardware can be discussed as part of the fixing package. Component selection, quantity and material should be confirmed according to the project drawing and fixing method.
Who should confirm final load review and project suitability?
Final load review, bracket selection, fixing method and project suitability should be confirmed by the responsible project party. WISINE can support product and RFQ review, but this page is for quotation and specification discussion only and does not replace responsible project review.

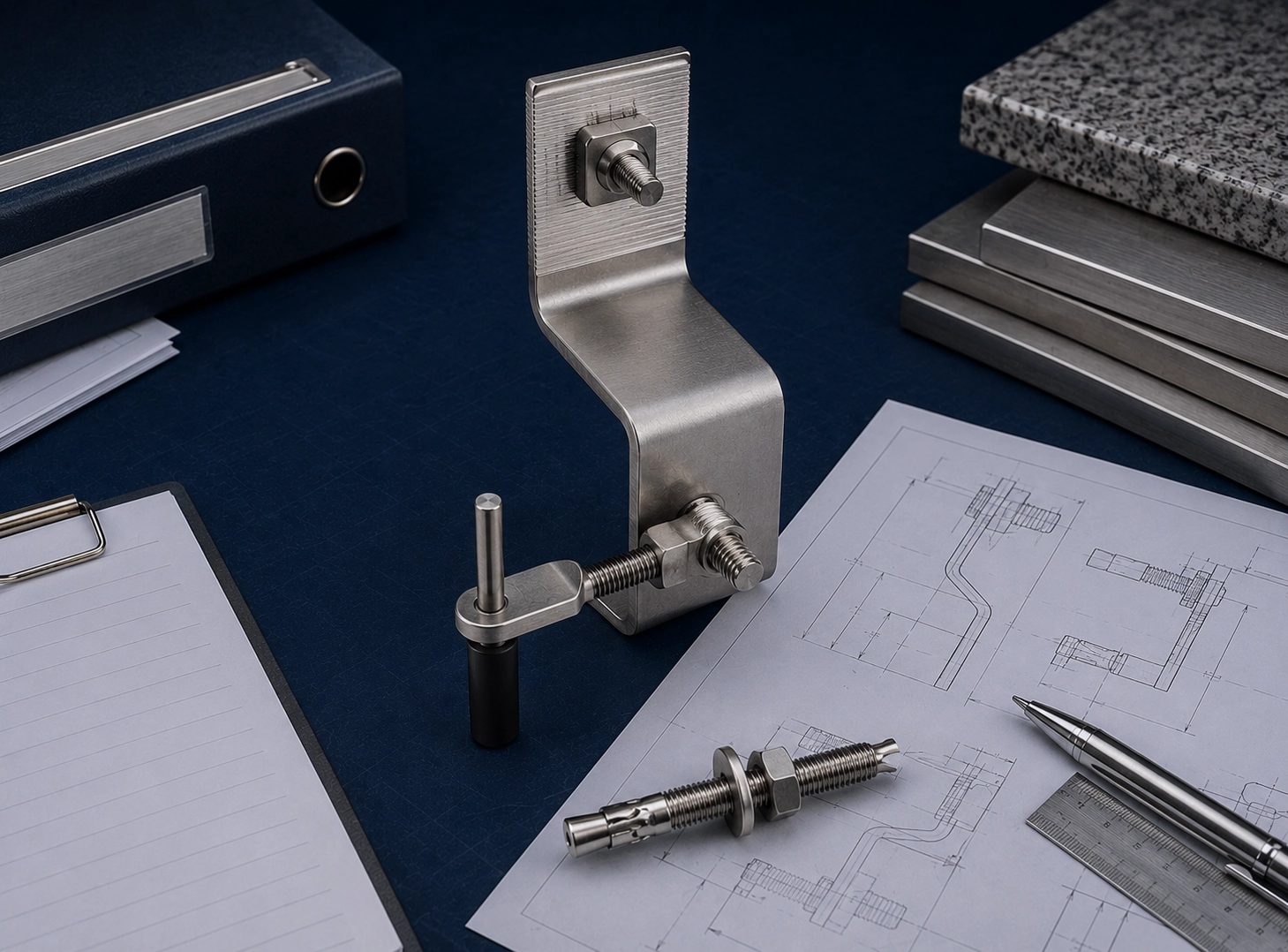

Z Bracket RFQ Checklist
Prepare the key details below before quotation so WISINE can review the Z bracket specification against drawings and project requirements.
Drawing Details
Z bracket drawing or sketch, thickness, width, height, length, hole diameter, hole position, slot requirement, and surface finish.
Project Conditions
Stone panel thickness, cavity or projection requirement, substrate type, application environment, project location, and quantity.
Materials & Documents
Material grade, certificate requirement, inspection requirement, packing requirement, delivery destination, and any project-specific standard.
Matching Hardware & Related Products
WISINE can supply Z Brackets together with matching anchors, rails, clips, bolts, washers, and custom facade fixing hardware according to project drawings.
Send Your Z Bracket Drawing for a Quote
Share your bracket drawing, material grade, thickness, surface finish, hole details, quantity, and required certificates. WISINE will help review the specification and prepare a practical export quotation for your stone cladding fixing system.
