Overview
Product Description

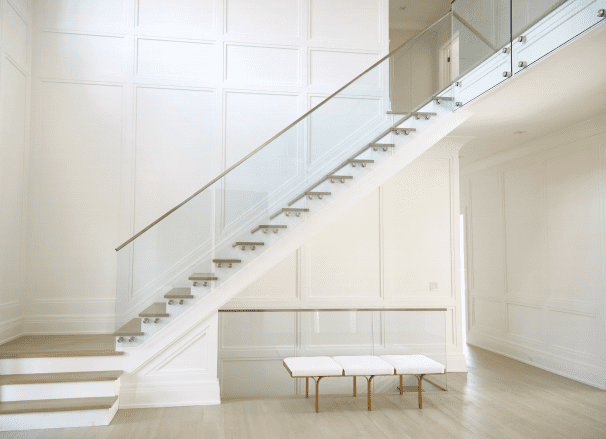

Made from the most corrosion-resistant stainless steel in the industry, the 2” Round Standoff Pin elegantly projects your glass panel away from the wall. With a slightly different design aesthetic from the sleek Side Mount Talon Spigots, these pins are a great alternative for both indoor and outdoor projects. Polished, powerful, discreet. Pay attention to the details with the Round Standoff Pin System, and get lost in your beautiful view.
Note: Standoff Pins are used to mount glass panels, not attach handrails to the glass.
Key Features
2″ Round Standoff Pin made from 2205 Stainless Steel.
Standoff pin projects your glass panel 1 7/8″ off the wall. Fits either 1/2″ thick tempered glass or 9/16″ laminated glass,
with a hole pre-drilled for the pin to pass through.
Can be used to mount glass panels up to 4 feet wide. Requires 4 pins per panel.
Mounting
For best use, install the 2” Round Standoff Pin on a wood surface. Pair it with either 1/2″ thick tempered glass or 9/16” thick laminated glass: each 4’ long panel must have 4 pre-drilled holes for each pin to pass through. The pin projects glass panels 1 7/8” from the mounting surface, fastened through 1 1/8″ wide holes. If you plan to use these with treads, you will need 2 pins on every tread, and the tread will need to be at least 3½” thick.
Specifications

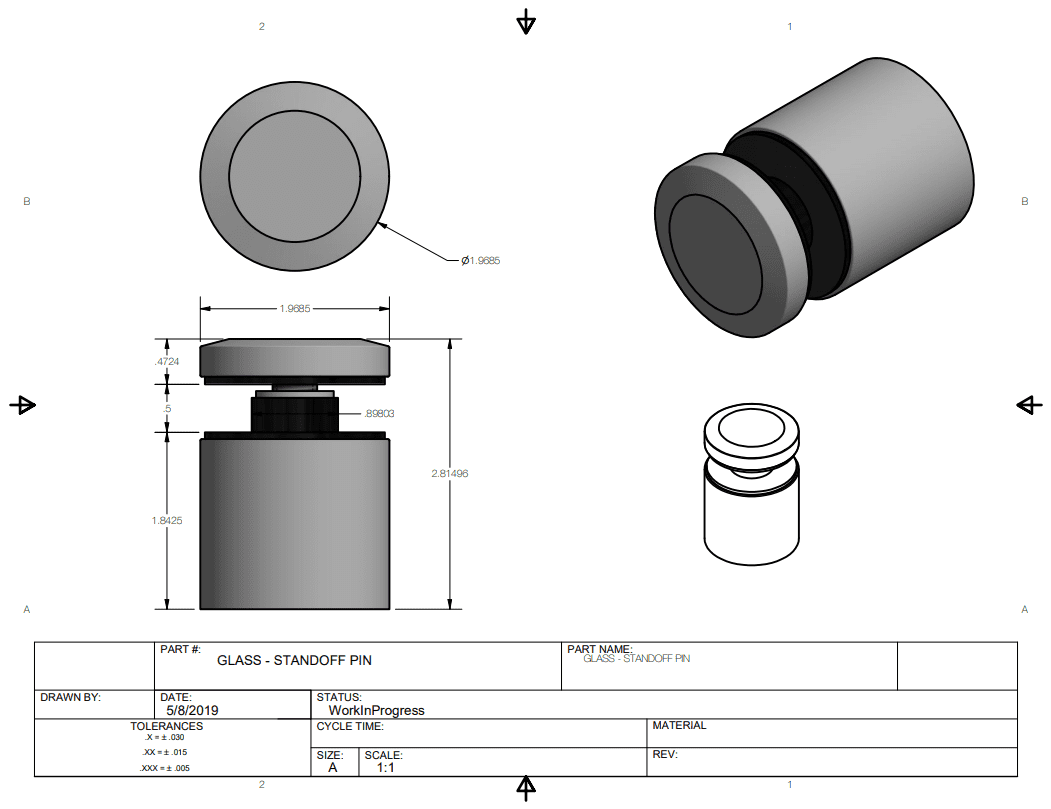

Product Specifications
Installation Guide

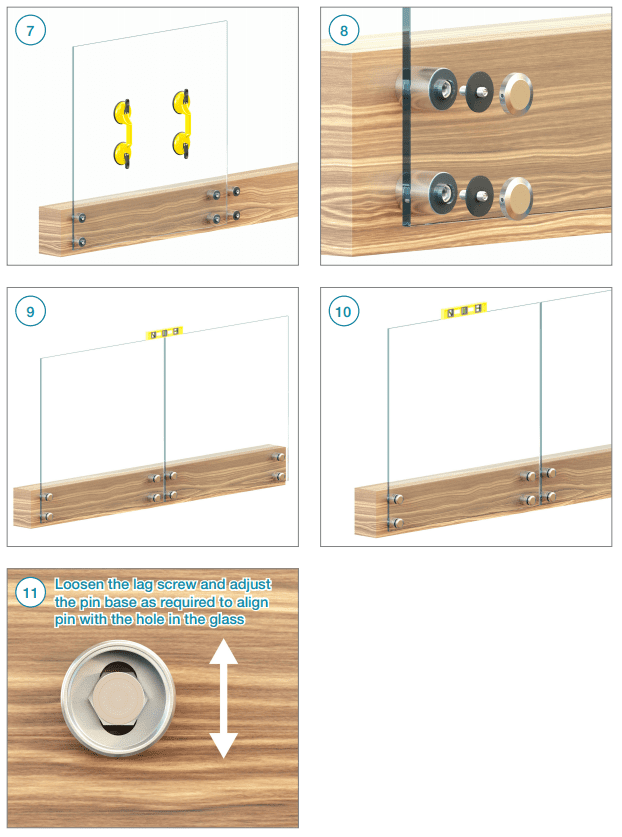

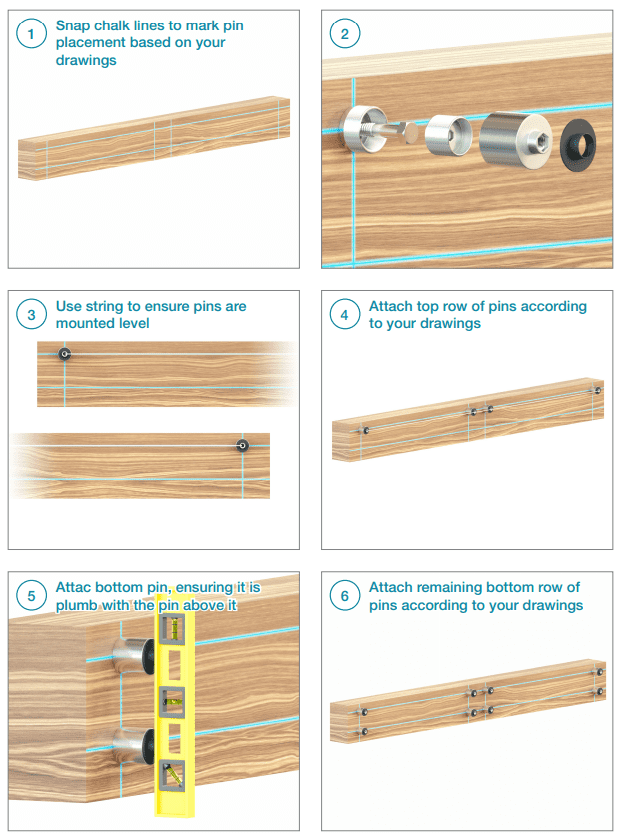

Installation Guide

01


02

03
