Overview

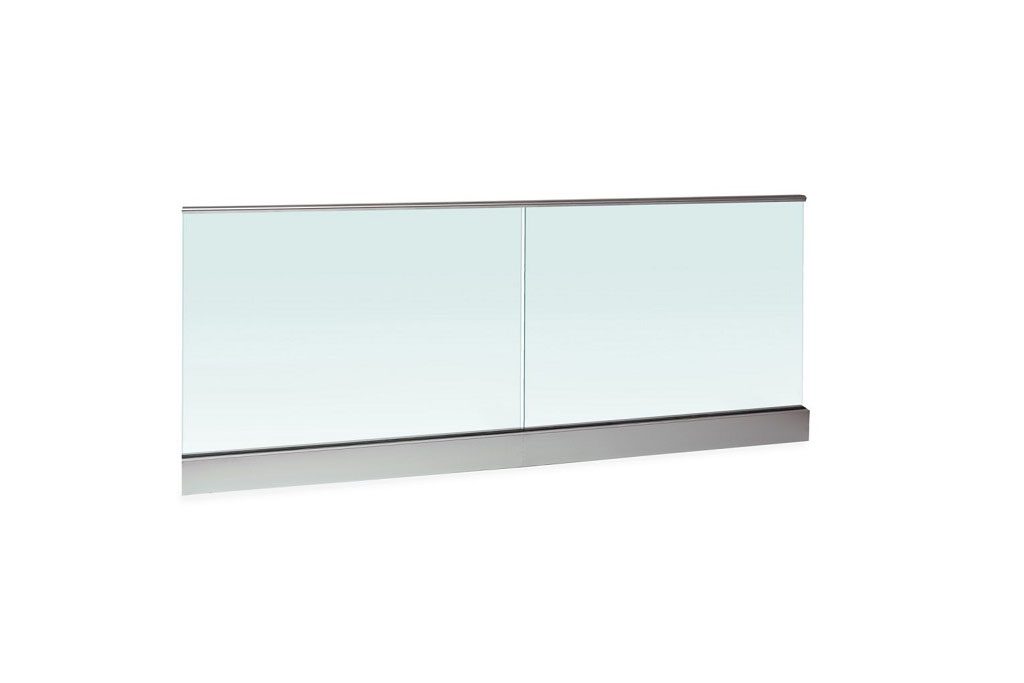

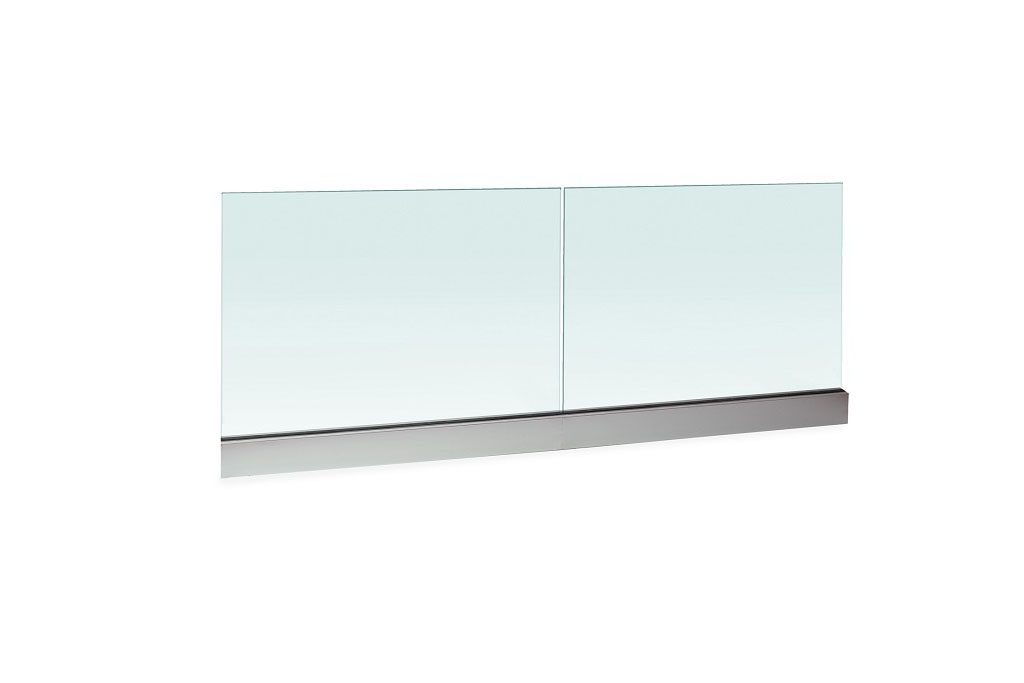

Product Description
With clean, modern lines and innovative Tilt Lock technology, the Glass Base Rail System elevates your style and makes it simple to align glass during installation. Base Rail is considered to be our easiest glass system to install. This system is available in 4′, 8′ and 12′ lengths, and works well with both ½” and 9/16” thick glass (sold separately). For a chic, fresh vision—choose the Glass Base Rail System.
Key Features
- Made from Anodized Aluminum
- Tilt-Lock Technology enables simple installation
- Compatible with 1/2” tempered and 9/16” laminated glass
- Comes in 4′, 8′ and 12′ lengths
- Glass sold separately
If you would like the base rail to be powder coated, please call in or submit a quote request. Glass is not included with the base rail.
Tilt Lock Technology
Perfecting the alignment of your glass panels can be a big headache. Even after installation, high winds can ruin the positioning- or worse, shatter the panels.
The Tilt Lock Technology found in the Glass Base Rail System gently grips the glass during installation. Adjust the panels until they are precisely positioned, then lock down the clips, securing the glass in place.
This revolutionary technology also helps relieve the trouble caused by high winds. Tilt Lock Technology allows the glass panels to flex ever so slightly, maintaining panel alignment and reducing the risk of shattered glass. Even if severe weather causes the system to shift around, re-aligning the disrupted glass panels is a breeze.
Installing glass can be tricky. Keep the process simple with Tilt Lock Technology.
Includes:
2 Relevant length of base rail cover with rubber pads
2 Base Rail End Caps
9 Base Rail Glass Grips
4 Base Rail Gap Fillers
12 Stabilizing Base Rail Washers
Specifications

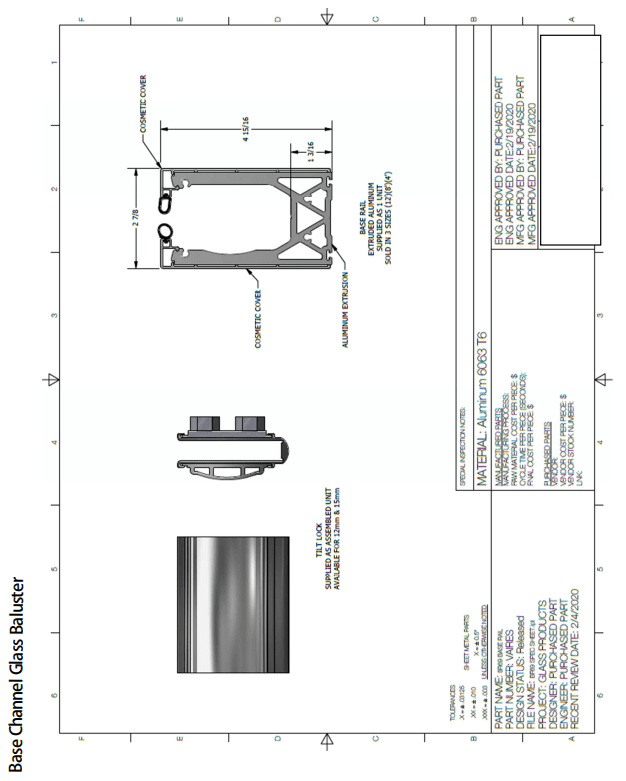

Product Specifications
Installation Guide

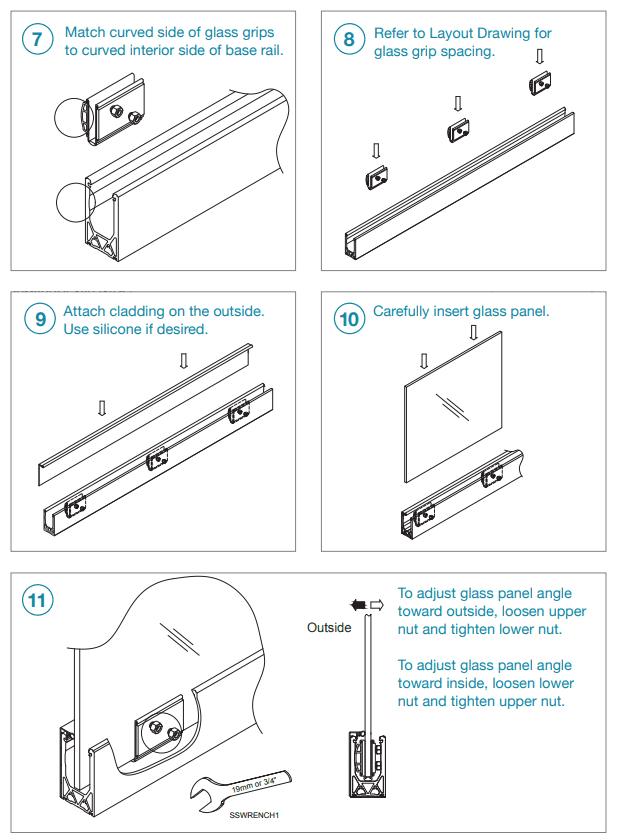

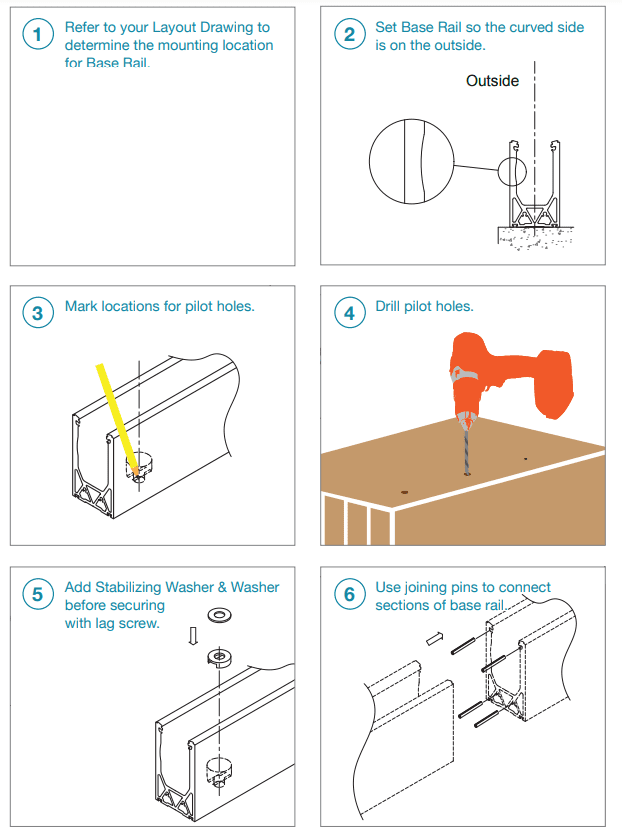

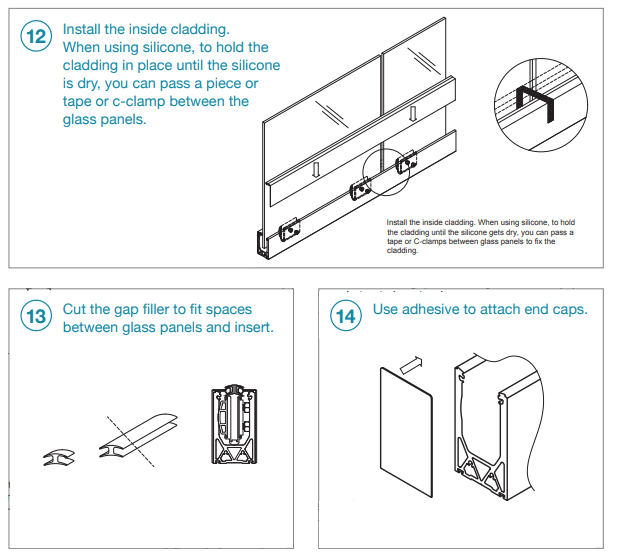

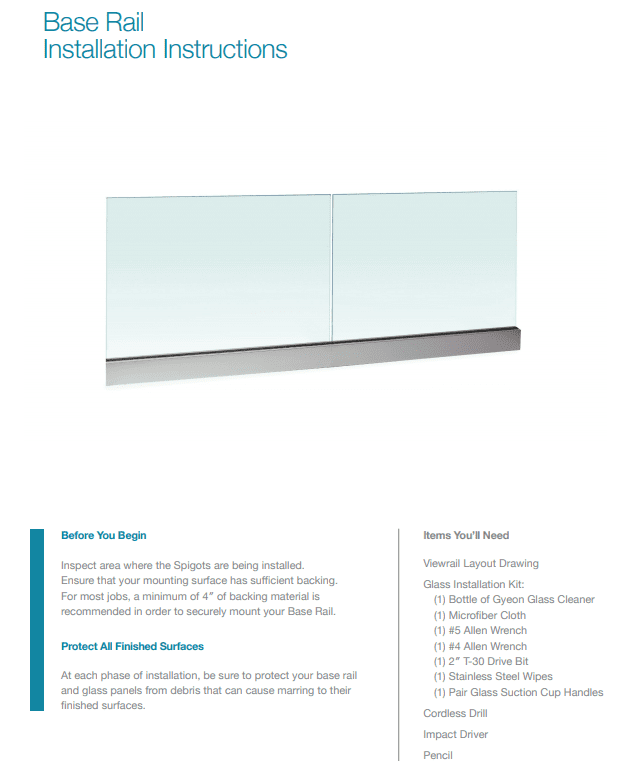

Installation Guide

01



02
