Industrial Washers and Custom Washers for Fastener Assemblies
Flat washers, heavy washers, spring washers, lock washers, tab washers, square washers, fender washers, Belleville washers and drawing-based custom washers for bolts, nuts, stud bolts, threaded rods, anchors and industrial fastener assemblies.

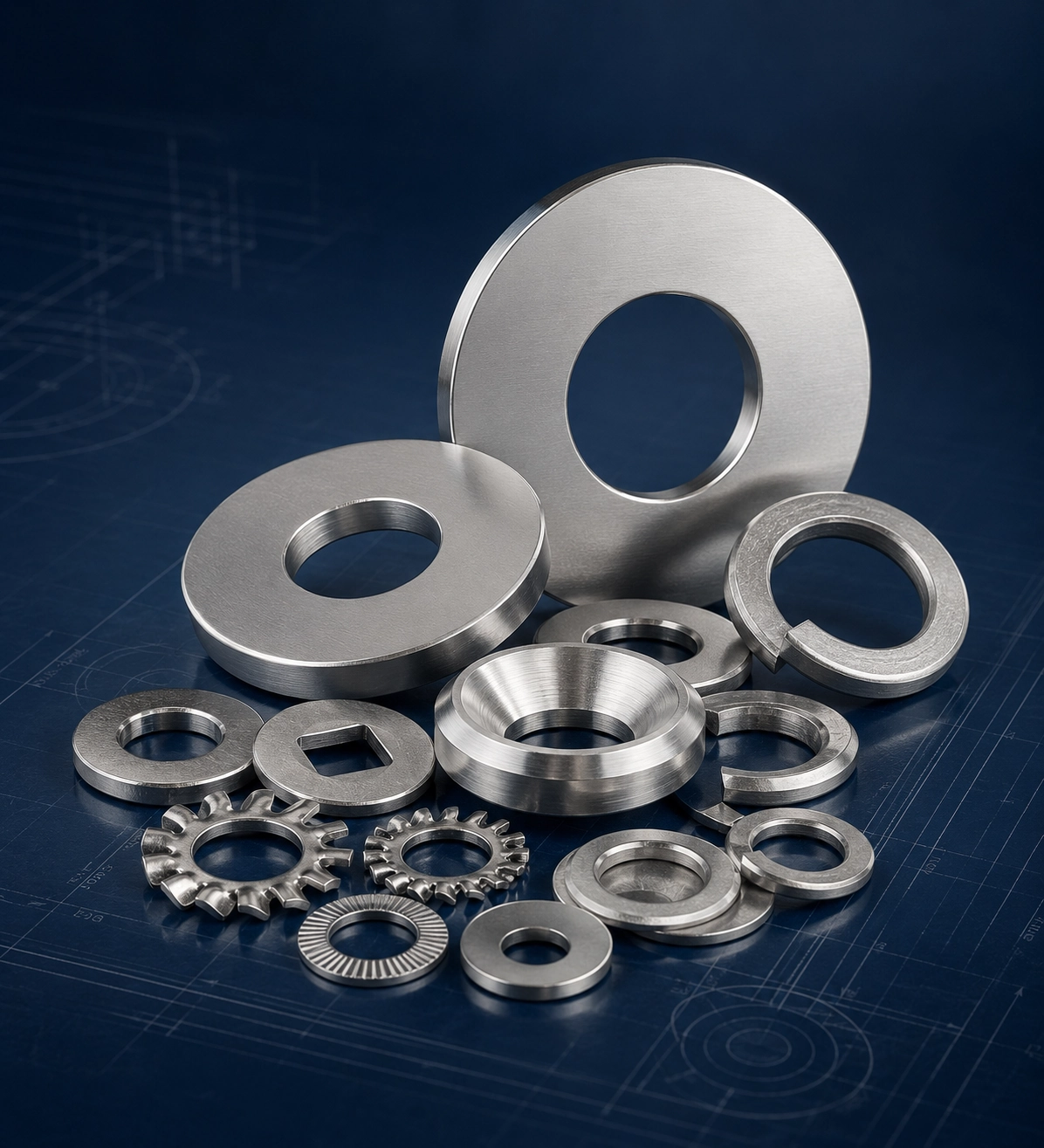

Standard and Drawing-Based Washers for Industrial Fastener Sets
Industrial washers are used with bolts, nuts, stud bolts, threaded rods and anchors in machinery, flange connections, structural assemblies, support systems, chemical equipment, petrochemical plants, marine, offshore, construction and custom assemblies.
WISINE can review standard and custom washers according to material grade, standard, inner diameter, outer diameter, thickness, finish, quantity and document requirements. Final specification should be confirmed before production.
Common Inquiry Focus
- Washer type, shape, hole detail and matched fastener set
- Material grade, product standard and application environment
- Inner diameter, outer diameter, thickness and edge condition
- Surface finish, coating and packing method
- Material certificates and inspection documents when required
Industrial Washer Product Scope
WISINE can review common washer types and drawing-based custom washer requirements according to confirmed specifications, drawings or samples.
Flat Washers
Flat washers for bolts, nuts, threaded rods, anchors and general industrial fastener assemblies.
Heavy Washers
Heavy washers where larger bearing area, thicker washer geometry or project-specified washer design is required.
Spring and Lock Washers
Spring washers and lock washers can be reviewed according to washer type, material, standard and application details.
Square and Tab Washers
Square washers and tab washers for project-specific geometry, slot or locking detail requirements.
Fender and Belleville Washers
Fender washers and Belleville washers can be discussed where the washer design is specified by drawing or standard.
Custom Washers
Drawing-based washers with non-standard inner diameter, outer diameter, thickness, slot, tab, hole shape or washer plate design.
Flat Washers and Heavy Washers
Flat washers and heavy washers can be reviewed according to ASTM, ASME, DIN, ISO, EN, JIS or drawing requirements. Heavy washers are commonly used where larger bearing area, thicker washer geometry or project-specified washer design is required.
Final standard, material, dimensions and thickness should be confirmed before quotation. Load requirements should be confirmed by the project engineer or according to project specifications.
Washer RFQ Details
- Washer type and product standard
- Inner diameter, outer diameter and thickness
- Hole shape, washer shape and edge detail
- Material grade and finish
- Matching bolt, nut or stud bolt requirement
Spring Washers, Lock Washers and Drawing-Based Washer Types
Special washer types should be reviewed according to drawing, standard, application requirement, material grade and confirmed dimensions.
Spring Washers
Spring washers can be reviewed according to spring washer type, material, dimensions and standard.
Lock Washers
Lock washers for assemblies where the washer style and locking detail are confirmed by project specification.
Tab Washers
Tab washers where tab geometry, bend detail and hole layout are specified by drawing.
Square Washers
Square washers for support systems, construction assemblies and custom hardware packages.
Fender Washers
Fender washers where larger outer diameter is specified for the assembly.
Belleville Washers
Belleville washers can be reviewed when the washer type, material and dimensional requirement are confirmed.
Washer Plates
Washer plates and large custom washers according to drawing, hole pattern and material requirement.
Drawing-Based Special Washers
Non-standard outer diameter, inner diameter, thickness, slot, tab, hole shape and washer plate details.
Matched Washers for Bolts, Nuts, Stud Bolts, Threaded Rods and Anchors
Washers are often quoted as part of a matched fastener set with bolts, nuts, stud bolts, threaded rods or anchors. Matching requirements should be confirmed before quotation, including material grade, washer quantity per assembly, standard, coating, packing and document requirements.
Where specified by project documents, WISINE can discuss washer requirements together with the matching fastener category so the final specification can be reviewed before production.
Common Set Details
- Bolt with nut and washer set
- Stud bolt with nuts and washers
- Threaded rod with matched nuts and washers
- Anchor assemblies with specified washer type
- Matched material grade, finish and documentation when required
Industrial Washer Material Grades
Material selection should be confirmed according to matching fastener grade, service environment, corrosion exposure, standard and document requirements. Availability is subject to material availability, quantity, processing requirements and document requirements.
| Material Family | Common Grades | Typical Washer Types | RFQ Confirmation Notes |
|---|---|---|---|
| Stainless Steel | 304, 304L, 316, 316L, 316Ti, 321, 347, 904L | Flat washers, spring washers, lock washers, heavy washers and custom washers | Confirm grade, standard, corrosion environment and finish. |
| Duplex / Super Duplex | 2205, 2507, S31803, S32205, S32750, S32760 | Duplex stainless steel washers and matched fastener sets | Confirm project specification and certificate requirement before quotation. |
| Nickel Alloys | Hastelloy C276, Hastelloy C22, Inconel 600, Inconel 625, Inconel 718, Incoloy 800H, Incoloy 800HT, Monel 400, Monel K500 | Nickel alloy washers, washer plates and custom washer sets | Confirm alloy grade, dimensions, quantity and inspection requirements. |
| Alloy Steel | ASTM A193 B7 / B7M matched washer packages where applicable, ASTM A320 L7 / L7M matched washer packages where applicable and project-specified alloy steel washers | Heavy washers, flat washers and matched bolt or stud bolt sets | Confirm matching fastener grade, standard, coating and document requirement. |
| High Strength / Special Stainless | 17-4PH, 15-5PH, A286, XM-19 and project-specified materials | Special washers, custom washers and drawing-based fastener assemblies | Confirm drawing, material condition and application requirement. |
Material-Specific Washer RFQs
Stainless steel, duplex stainless steel and nickel alloy washers should be reviewed according to the matching fastener grade, service environment and project document requirements. Material families should not be treated as interchangeable without project confirmation.
Stainless Steel Washers
304, 304L, 316, 316L and project-specified stainless steel washers can be discussed for flat washers, heavy washers, spring washers, lock washers and custom washer designs.
Duplex and Super Duplex Washers
Duplex 2205 and super duplex 2507 washer requirements can be reviewed where corrosion exposure, fastener grade and project documents specify duplex material selection.
Nickel Alloy Washers
Hastelloy C276, Inconel 625, Inconel 718 and other project-specified nickel alloy washers can be discussed according to drawings, standards and document requirements.
Standards, Dimensions and Washer RFQ Discussion
ASTM / ASME / DIN / ISO / EN / JIS specifications can be discussed according to order requirements. Washer dimensions should be confirmed according to standards or drawings. EN 10204 3.1 / 3.2 material certificates and third-party inspection requirements can be discussed when required. Certificate availability should be confirmed before quotation.
| RFQ Item | Information to Provide |
|---|---|
| Washer Type | Flat washer, heavy washer, spring washer, lock washer, square washer, tab washer, fender washer, Belleville washer or custom washer. |
| Material Grade | 304, 316, 2205, 2507, C276, 625, Monel 400, B7 / B7M matched package, L7 / L7M matched package, A286, XM-19 or project-specified material. |
| Standard | ASTM / ASME, DIN, ISO, EN, JIS or drawing-based specification. |
| Dimensions | Inner diameter, outer diameter, thickness, washer shape, hole shape, chamfer, edge condition and any flatness requirement if specified. |
| Matching Fasteners | Bolt, nut, stud bolt, threaded rod or anchor details when the washer is supplied as part of a set. |
| Finish and Documents | Passivation, galvanizing, coating, polishing, certificate requirement, inspection requirement, packing requirement and destination country. |
Washer Dimension and Surface Finish Options
Washer size, thickness and surface finish should be confirmed according to drawings, standards or confirmed specifications before production.
Washer Dimensions
Inner diameter, outer diameter, thickness, washer type, washer shape and hole shape should be confirmed in the RFQ.
Edge and Flatness Details
Chamfer, edge condition, slot details, washer plate geometry and flatness requirement can be reviewed when specified.
Surface Finish
Passivation, galvanizing, coating, polishing, plain finish or project-specified finish can be discussed according to order requirements.
Custom Washers According to Drawing
Custom washers can be reviewed according to drawing, sample, standard, photo or confirmed dimensions. Non-standard outer diameter, non-standard inner diameter, custom thickness, square washer geometry, tab washer geometry, special hole shape, slot, washer plate and project-specific assembly requirements can be discussed.
Final specification should be confirmed before production. Material certificates and inspection documents can be discussed when required.
Drawing Review Details
- Drawing, sample photo or marked sketch
- Material grade and surface finish
- Inner diameter, outer diameter, thickness and hole shape
- Quantity, packing and document requirement
Information to Prepare for an Industrial Washer Quotation
Clear RFQ details help confirm the correct washer type, material, dimensions, matching hardware, finish and document requirements before quotation.
| Requirement | Details to Confirm |
|---|---|
| Washer Type | Flat washer, heavy washer, spring washer, lock washer, square washer, tab washer, fender washer, Belleville washer or custom washer according to drawing. |
| Material and Standard | Material grade, ASTM / ASME / DIN / ISO / EN / JIS reference, project specification or confirmed drawing requirement. |
| Dimensions | Inner diameter, outer diameter, thickness, hole shape, washer shape, edge condition and any flatness requirement if specified. |
| Matching Hardware | Matching bolt, nut, stud bolt, threaded rod or anchor details, including washer quantity per fastener set. |
| Finish and Documents | Surface finish, coating or passivation, certificate requirement, inspection requirement, packing requirement and destination country. |
| Custom Washer Details | Drawing, sample photo, marked sketch or confirmed dimensions for non-standard diameter, thickness, slot, tab, hole shape or washer plate designs. |
Industrial Washers FAQ
Can WISINE supply custom washers according to drawing?
Custom washers can be reviewed according to drawings, samples, material grade, dimensions, hole shape, finish and quantity.
Can washers be supplied with bolts, nuts or stud bolts?
Washers can be reviewed with matching bolts, nuts, stud bolts, threaded rods and anchors according to material, size, standard and project requirements.
Which washer material should I choose?
Material selection should be confirmed according to matching fastener grade, service environment, corrosion exposure and project specification.
Can ASTM, DIN, ISO or JIS washer requirements be discussed?
ASTM / ASME / DIN / ISO / EN / JIS specifications can be discussed according to order requirements.
Can certificates be provided?
Material certificates and inspection documents can be discussed when required. Certificate availability should be confirmed before quotation.
What affects production schedule?
Schedule depends on material availability, quantity, processing requirements, surface finish and document requirements.
Send Your Industrial Washer Requirement
Share washer type, material grade, standard, inner diameter, outer diameter, thickness, hole shape, washer shape, matching bolt or stud bolt details, surface finish, quantity, certificate requirement, inspection requirement, destination country and drawing if non-standard. WISINE can help review the details and prepare a practical export quotation.
